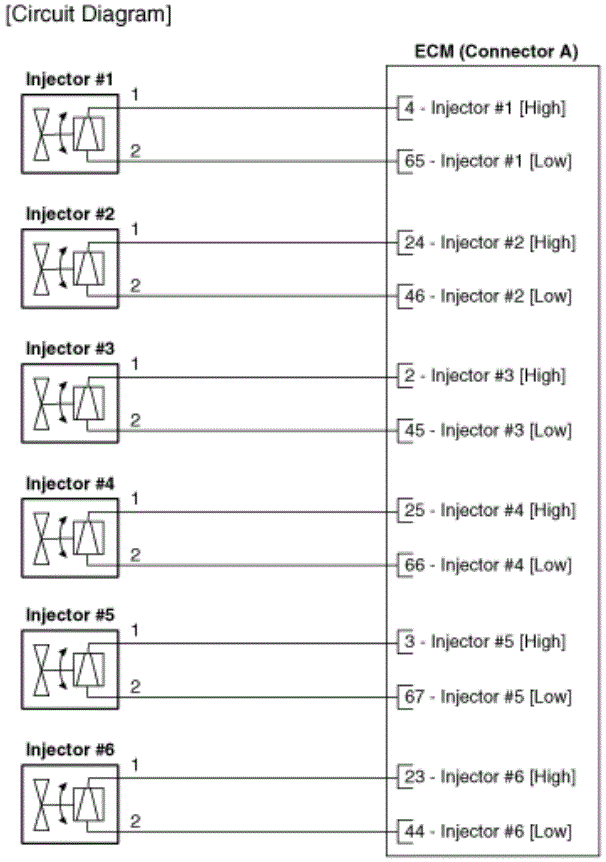

Circuit Diagram: Notes

G15477137Courtesy of HYUNDAI MOTOR AMERICA

[Connection Information]

TERMINAL AND FUNCTION DESCRIPTION

Terminal Connected Function
1 ECM Connector A (4) injector #1 [High] Control
2 ECM Connector A (65) injector #1 [LOW] Control
TERMINAL AND FUNCTION DESCRIPTION

Terminal Connected Function
1 ECM Connector A (24) injector #2 [High] Control
2 ECM Connector A (46) injector #2 [LOW] Control
TERMINAL AND FUNCTION DESCRIPTION

Terminal Connected Function
1 ECM Connector A (2) injector #3 [High] Control
Li ECM Connector A (45) injector #3 [LOW] Control
TERMINAL AND FUNCTION DESCRIPTION

Terminal Connected Function
1 ECM Connector A (25) injector #4 [High] Control
2 ECM Connector A (66) injector #4 [LOW] Control
TERMINAL AND FUNCTION DESCRIPTION

Terminal Connected Function
1 ECM Connector A (3) injector #5 [High] Control
2 ECM Connector A (67) injector #5 [LOW] Control
TERMINAL AND FUNCTION DESCRIPTION

Terminal Connected Function
1 ECM Connector A (23) injector #6 [High] Control
2 ECM Connector A (44) injector #6 [LOW] Control
