Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.

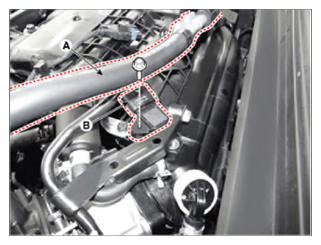

  2. Disconnect the vacuum hose (A).
  3. Disconnect the intake temperature sensor connector (B).
  4. Remove the sensor after loosening the mounting bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G15477081Courtesy of HYUNDAI MOTOR AMERICA
