Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.

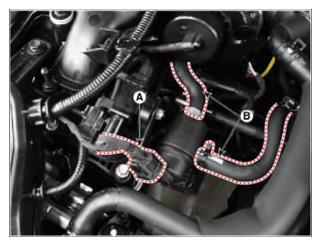

  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  4. Remove the valve from the bracket.
    G15477153Courtesy of HYUNDAI MOTOR AMERICA
