VIN Programming Procedure

VIN (Vehicle Identification Number) is a number that has the vehicle's information (Maker, Vehicle Type, Vehicle Line/Series, Body Type, Engine Type, Transmission Type, Model Year, Plant Location and so forth. For more information, please refer to "GENERAL INFORMATION " the group "GI" in this SERVICE INFORMATION). When replacing an ECM, the VIN must be programmed in the ECM. If there is no VIN in ECM memory, the fault code (DTC P0630) is set.

1. Turn OFF the ignition switch.
2. Connect the diagnostic tool to Data Link Connector (DLC).
3. Turn ON the ignition switch.
4. Select "Vehicle, Model Year, Engine, System".

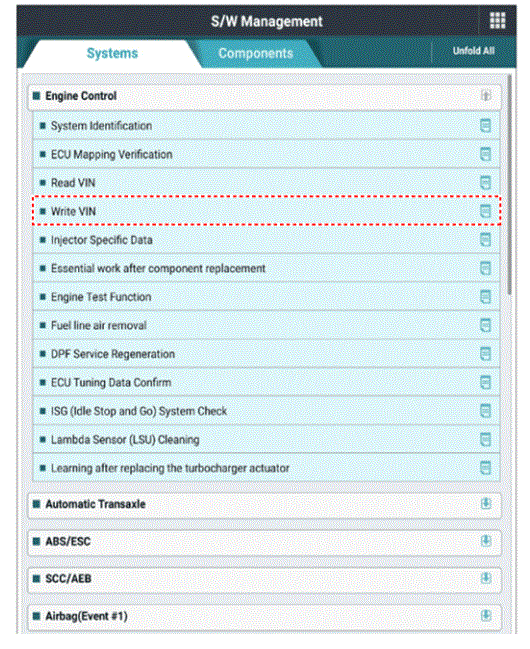

5. Select "Vehicle S/W Management".

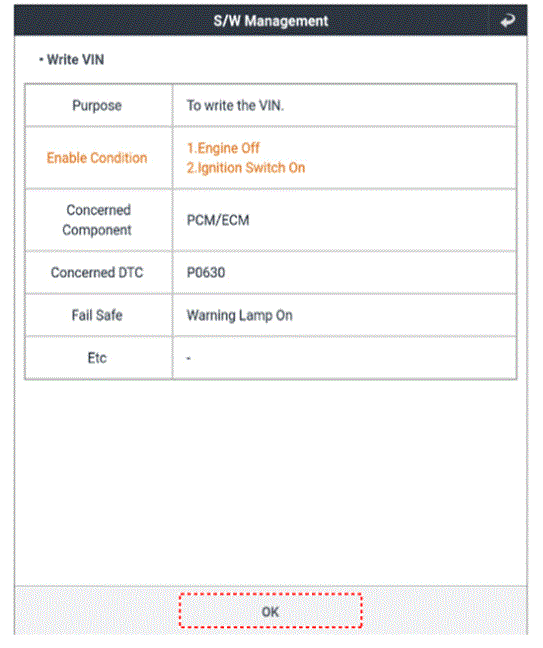

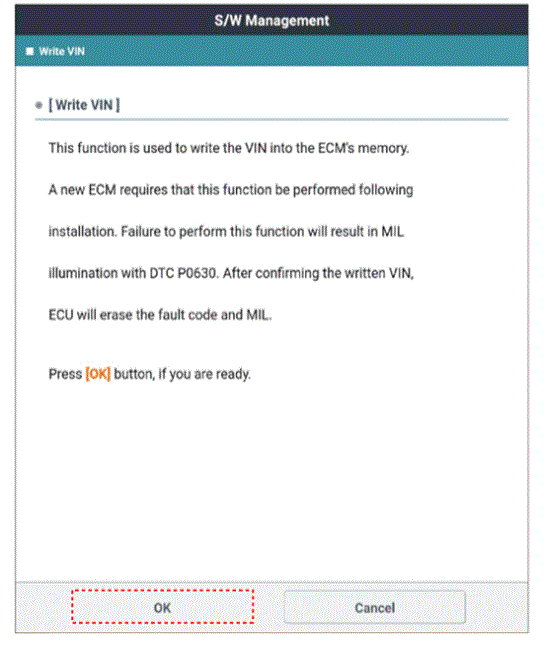

6. Select "Write VIN".

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

7. Input the VIN.
   WARNING:

   • Before inputting the VIN, confirm the VIN again because the programmed VIN cannot be changed.

   Courtesy of HYUNDAI MOTOR AMERICA
