Components & Components Location: Components

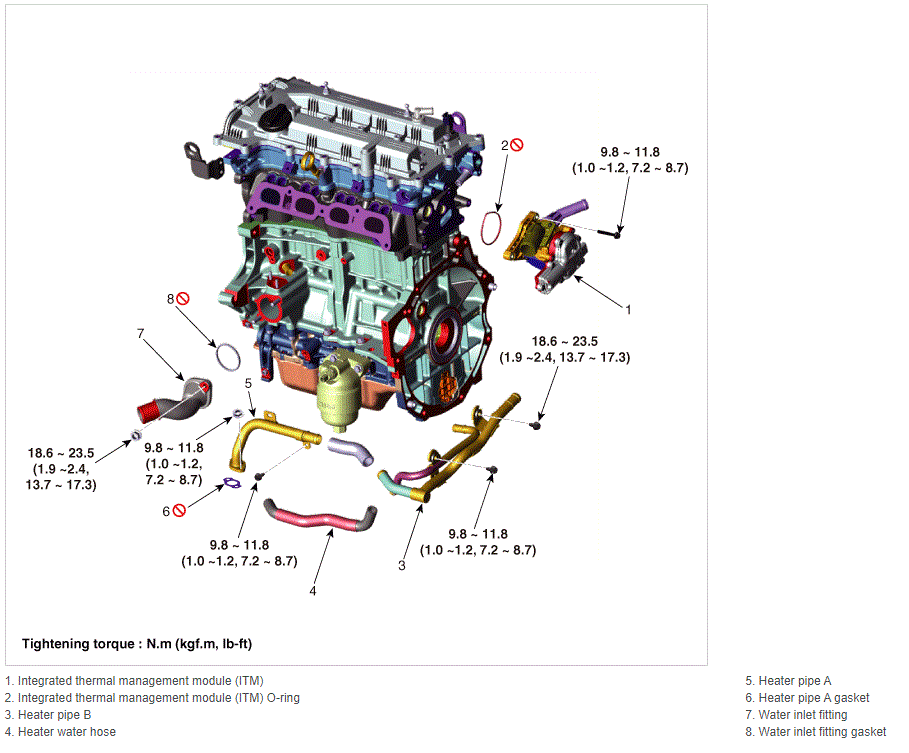

Fig 1: Thermal Management Module Motor Components Location With Torque Specification

G16146498

Courtesy of HYUNDAI MOTOR AMERICA
