Code 35: EGR Temperature Sensor (Q45)

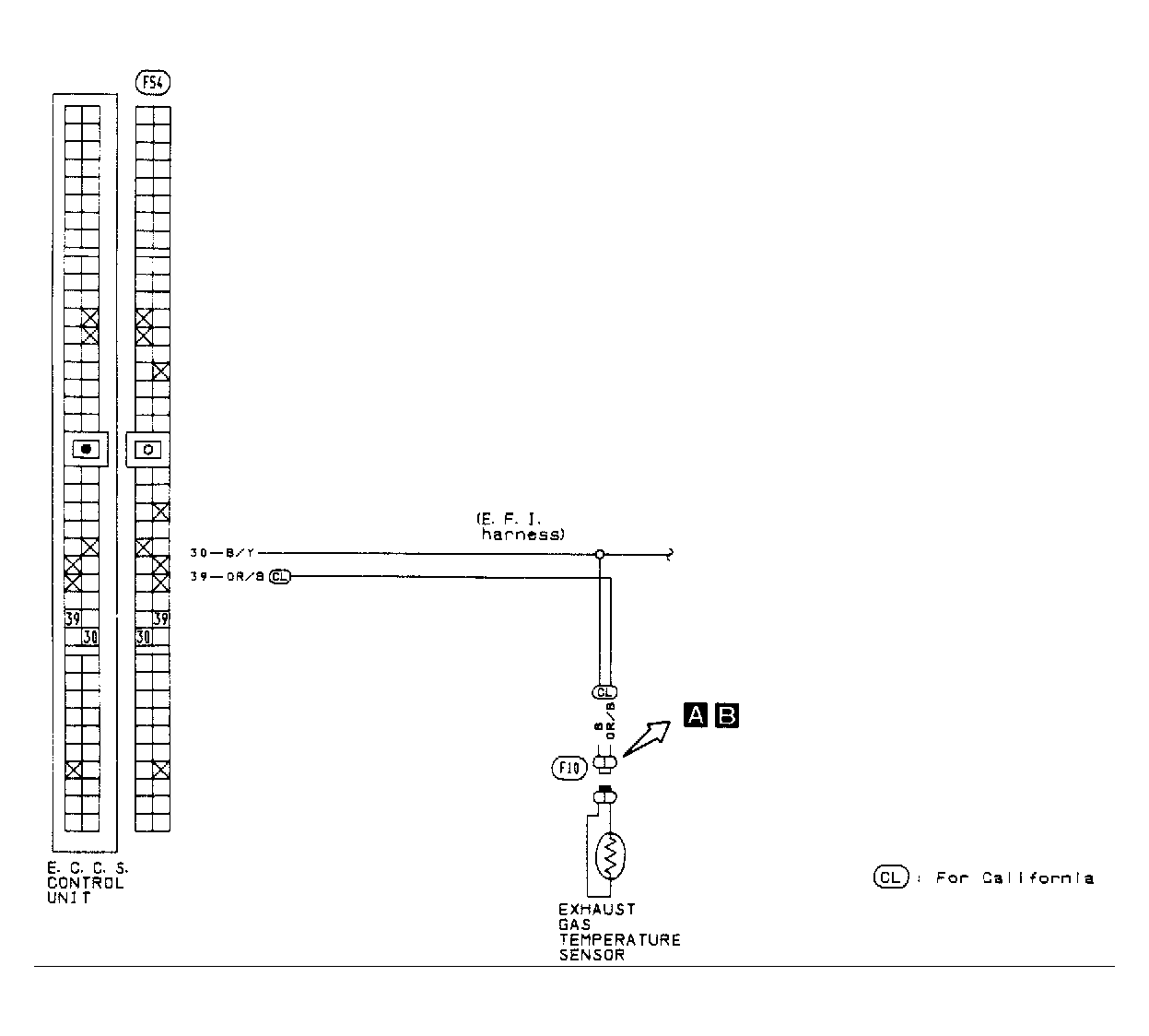

Fig 1: Q45 Code 35: EGR Temp Sensor Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

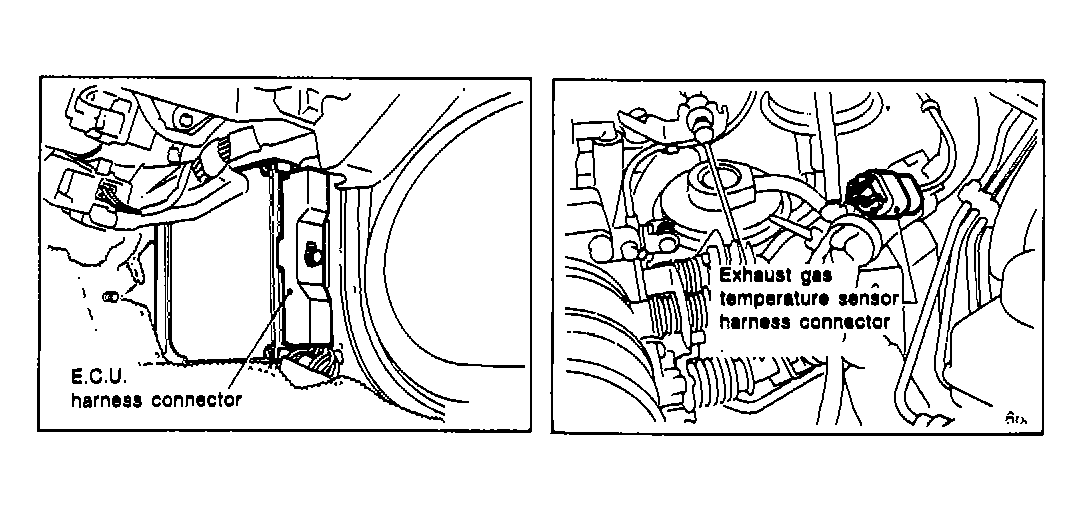

Fig 2: Q45 Code 35: Component Harness Connector Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

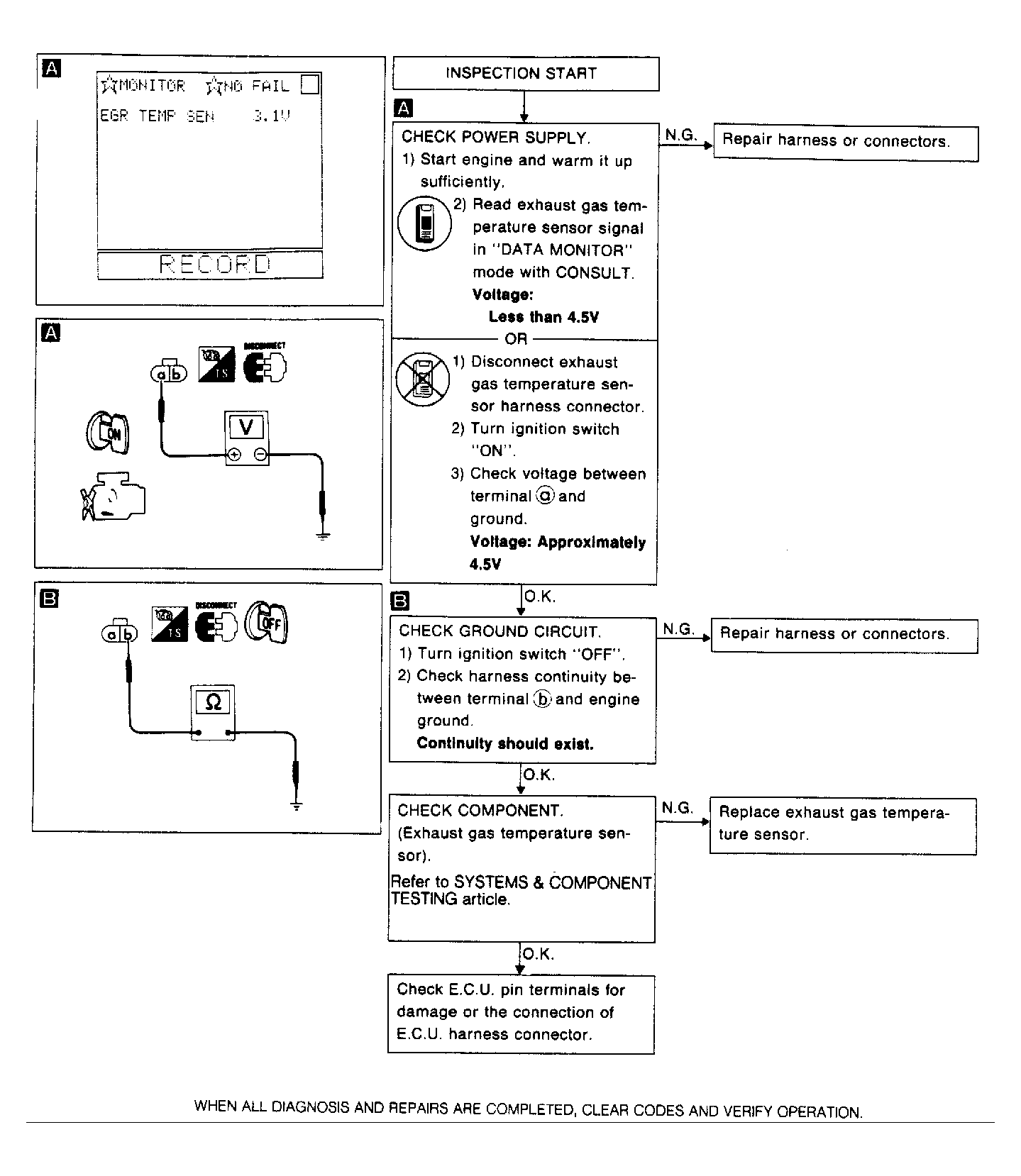

Fig 3: Q45 Code 35: EGR Temp Sensor Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
