Component Locations

When locating components, refer to the following diagrams. See Fig 1 -Fig 3 .

Fig 1: Underhood Engine Performance Component Location ID (G20)

Courtesy of NISSAN MOTOR CO., U.S.A.

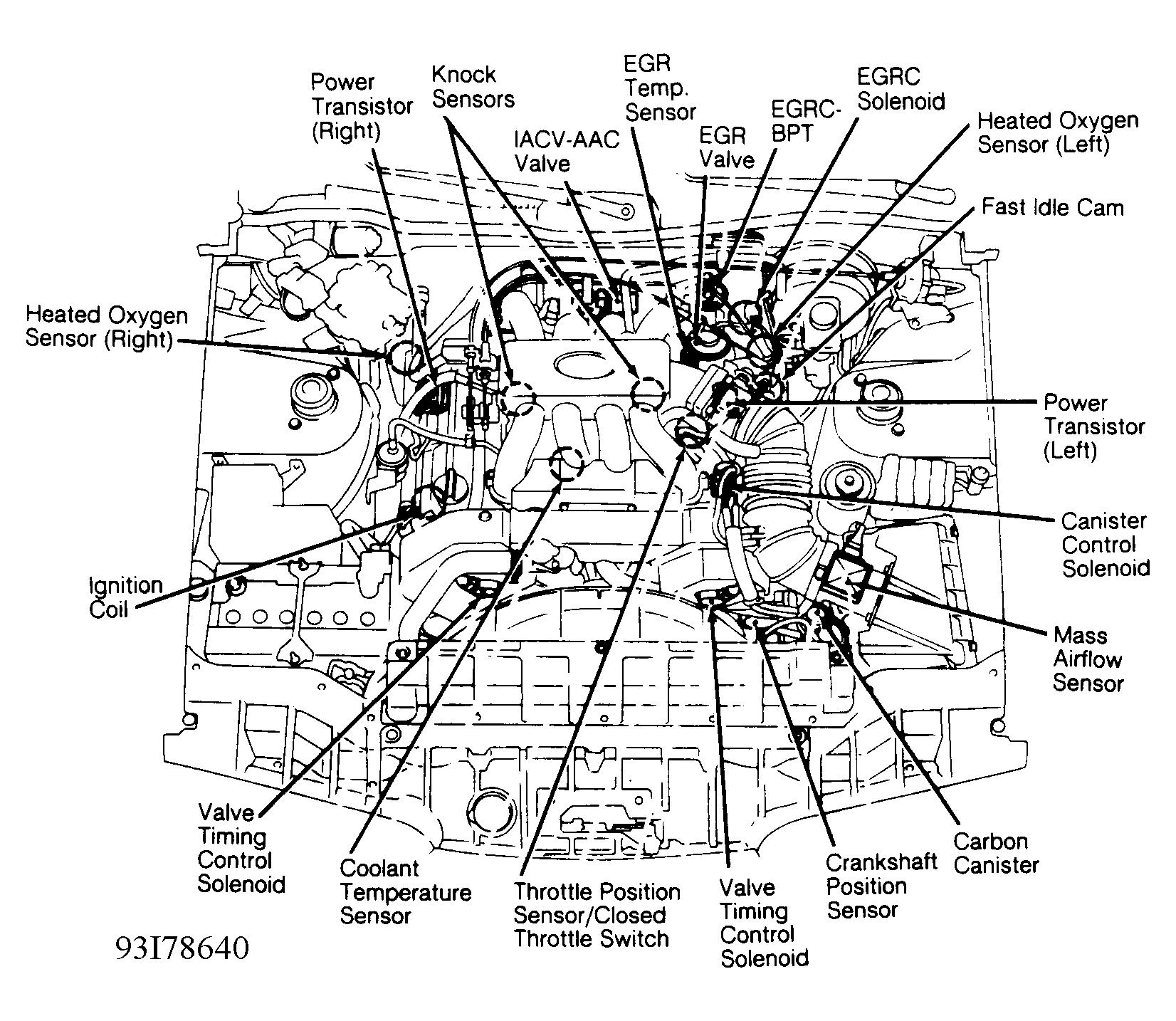

Fig 2: Underhood Engine Performance Component Location ID (J30)

Courtesy of NISSAN MOTOR CO., U.S.A.

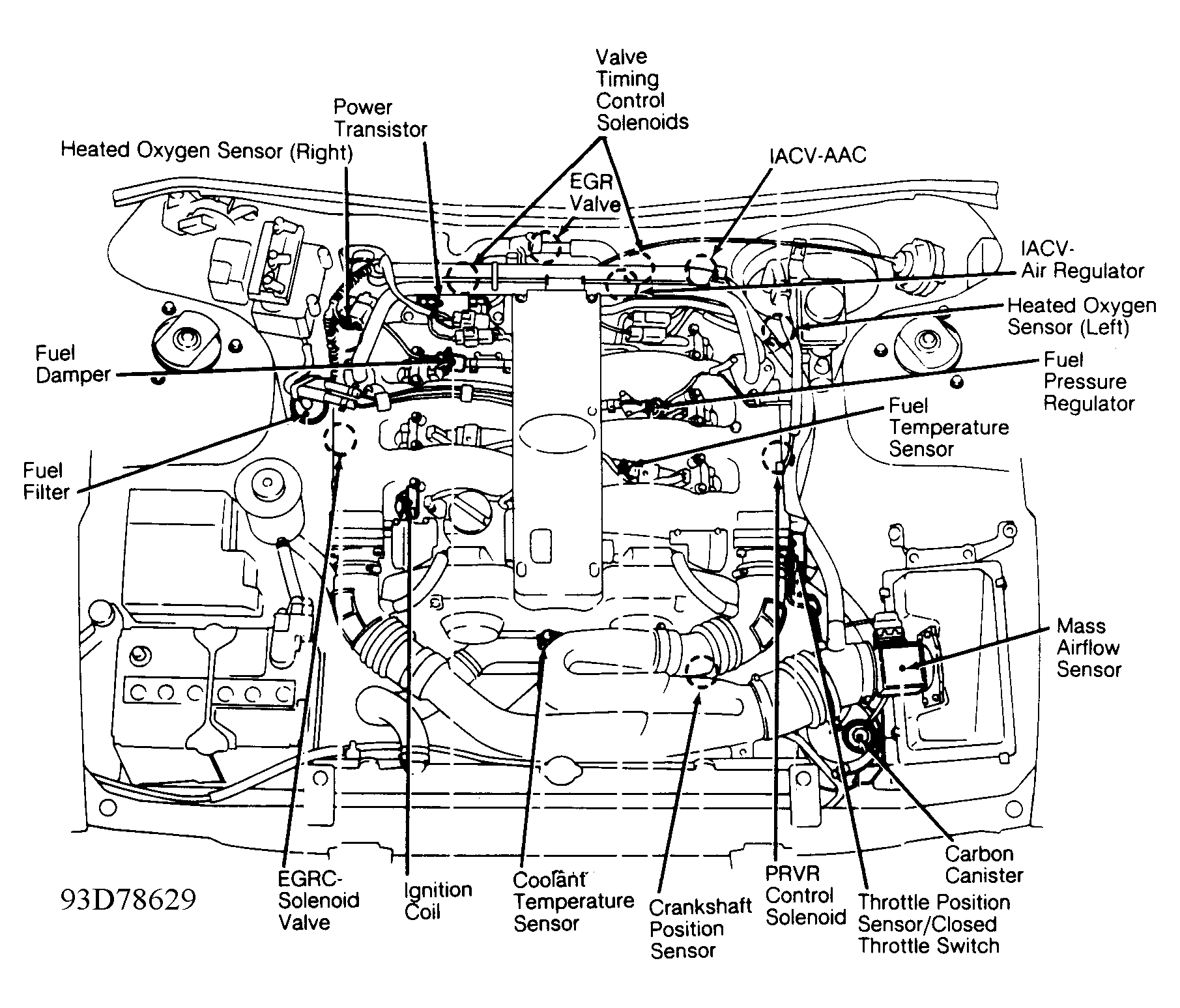

Fig 3: Underhood Engine Performance Component Location ID (Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.
