Fuse Block

Fuse block is located under left side of instrument panel. To identify components on fuse block, see Fig 1 .

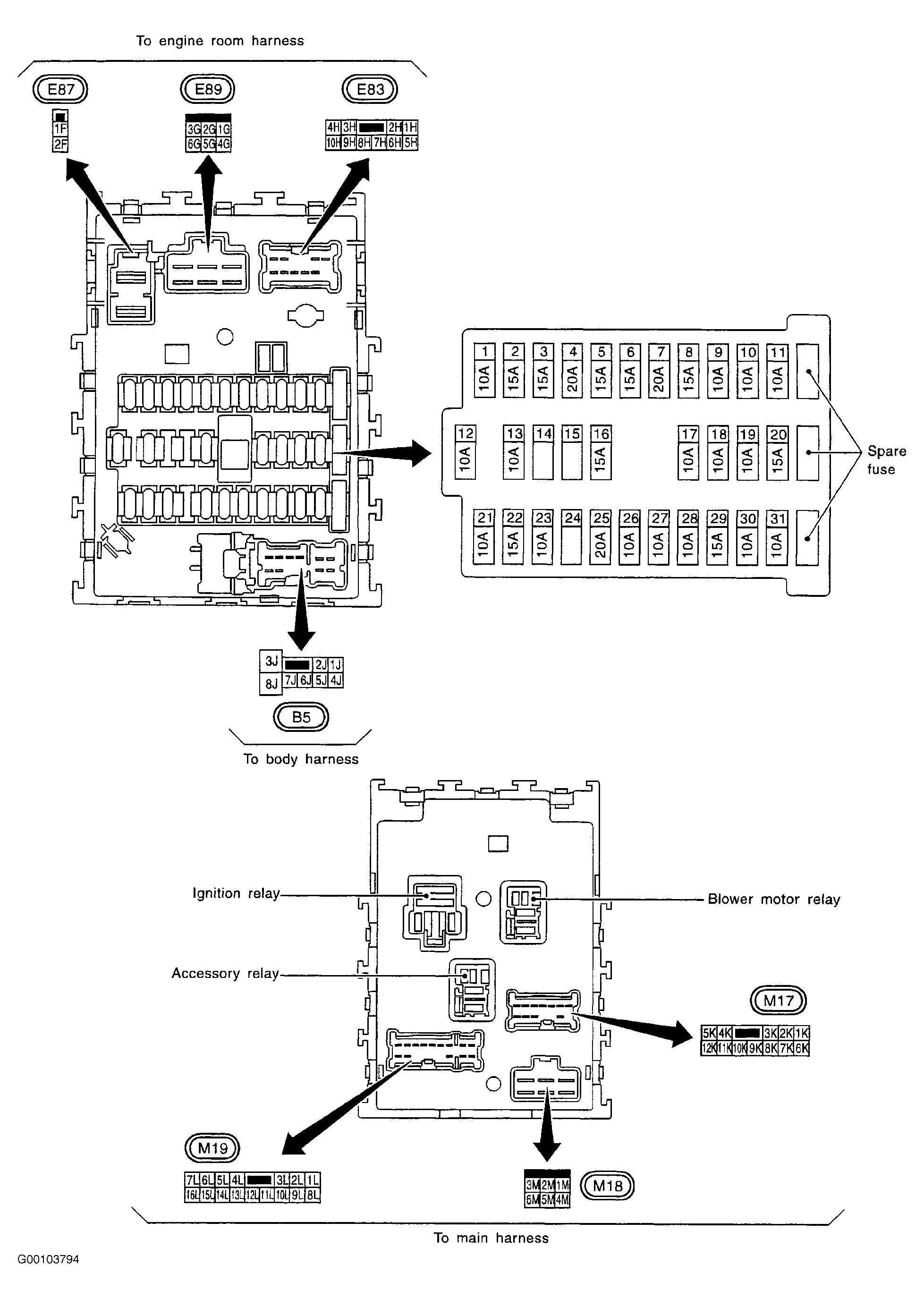

Fig 1: Identifying Fuse Block Relays, Connectors & Terminals
G00103794Courtesy of NISSAN MOTOR CO., U.S.A.
