Home >> Infiniti >> 2003 >> M45 >> Repair and Diagnosis >> Electrical >> Starters >> Overhaul

Repair and Diagnosis: Electrical: Starters: Overhaul

NOTE: See Fig 1 for overhaul reference.

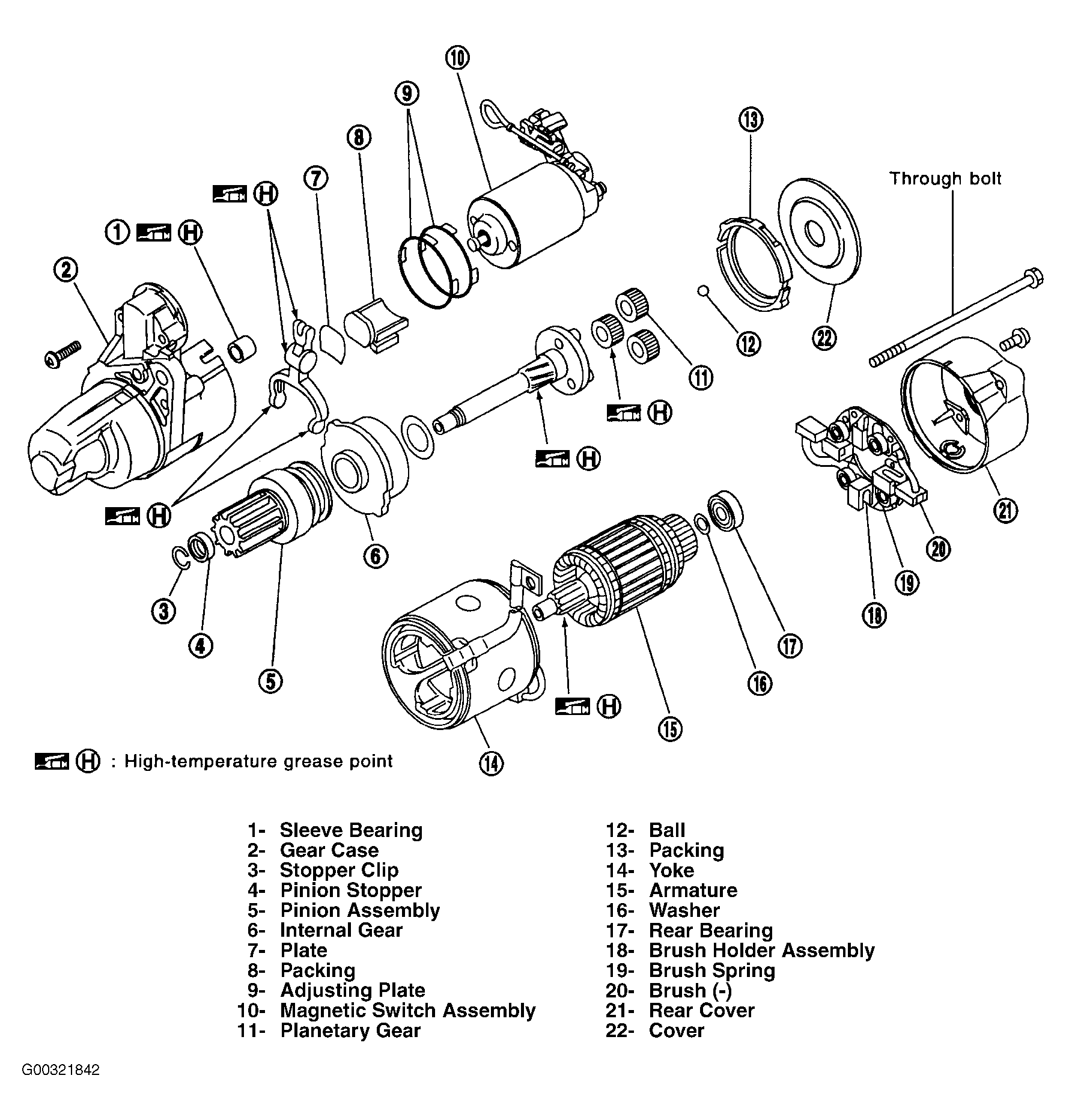

Fig 1: Exploded View of Starter
G00321842Courtesy of NISSAN MOTOR CO., U.S.A.
