Method B
Remove No. 1 ignition coil.
Fig 1: Locating No. 1 Ignition Coil
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown in
Fig 2
, and attach timing light clamp to this wire.

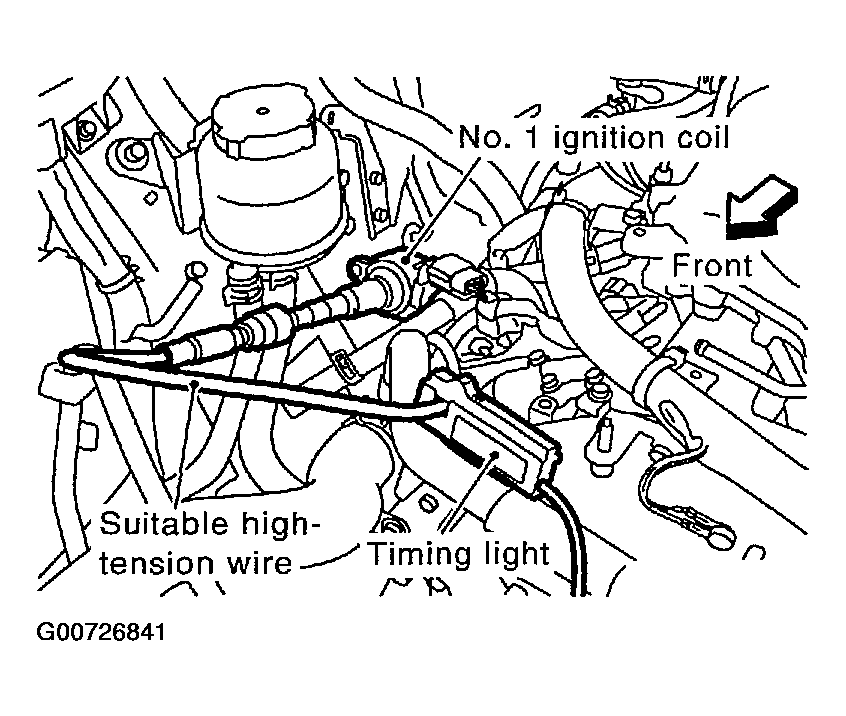

Fig 2: Identifying No. 1 Ignition Coil
Courtesy of NISSAN MOTOR CO., U.S.A.

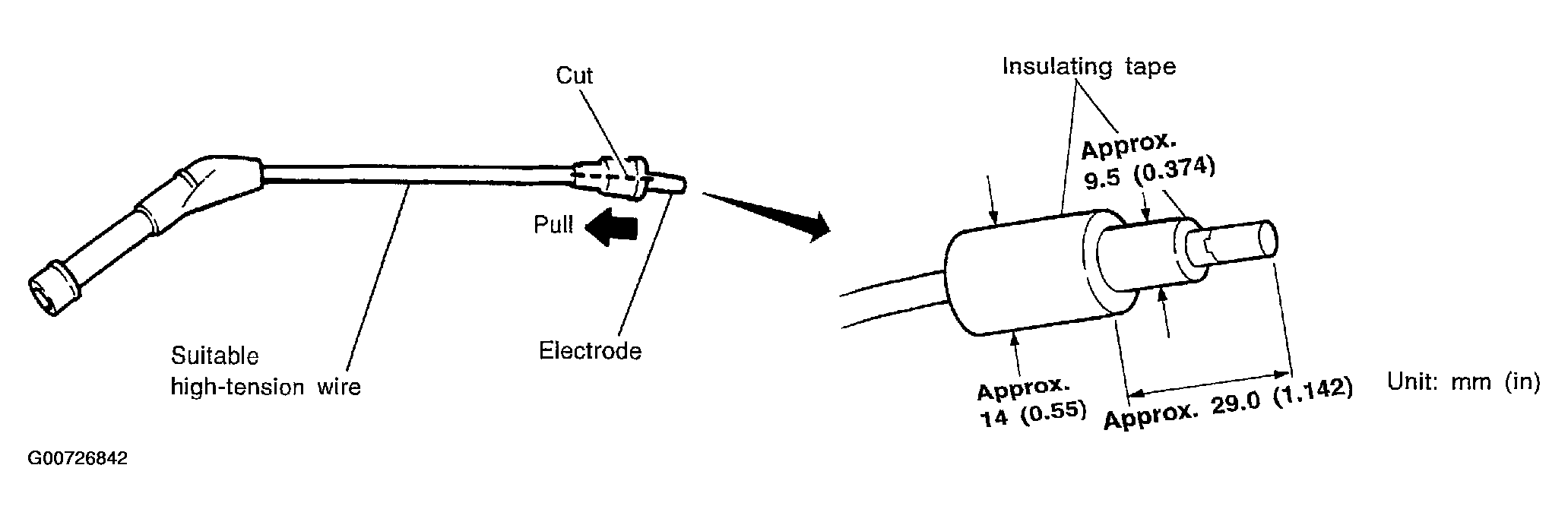

Fig 3: Identifying High Tension Wire Measurements
Courtesy of NISSAN MOTOR CO., U.S.A.

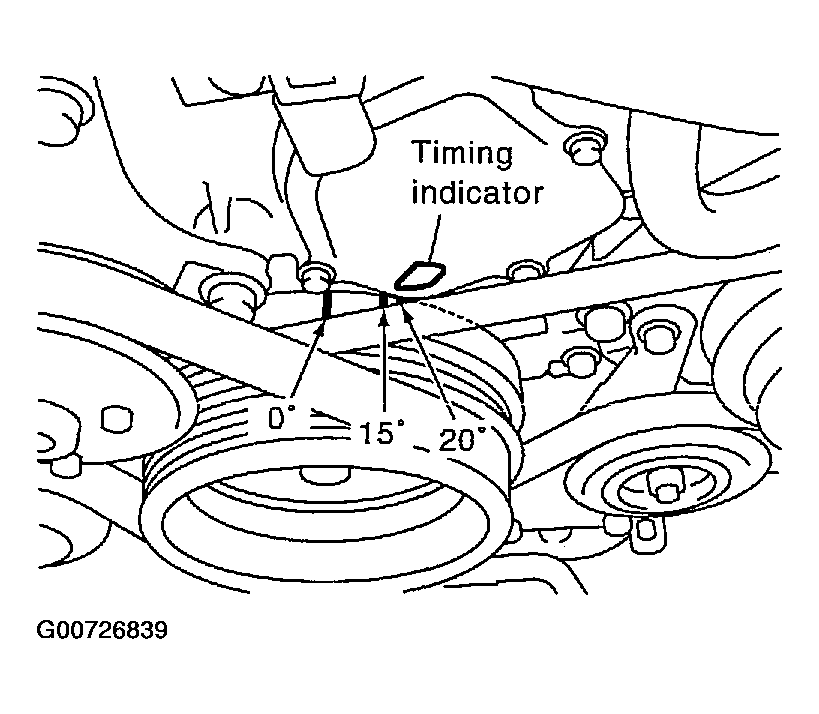

Check ignition timing. See
Figure
.
