Active Test Mode
Active Test Mode
Test Item

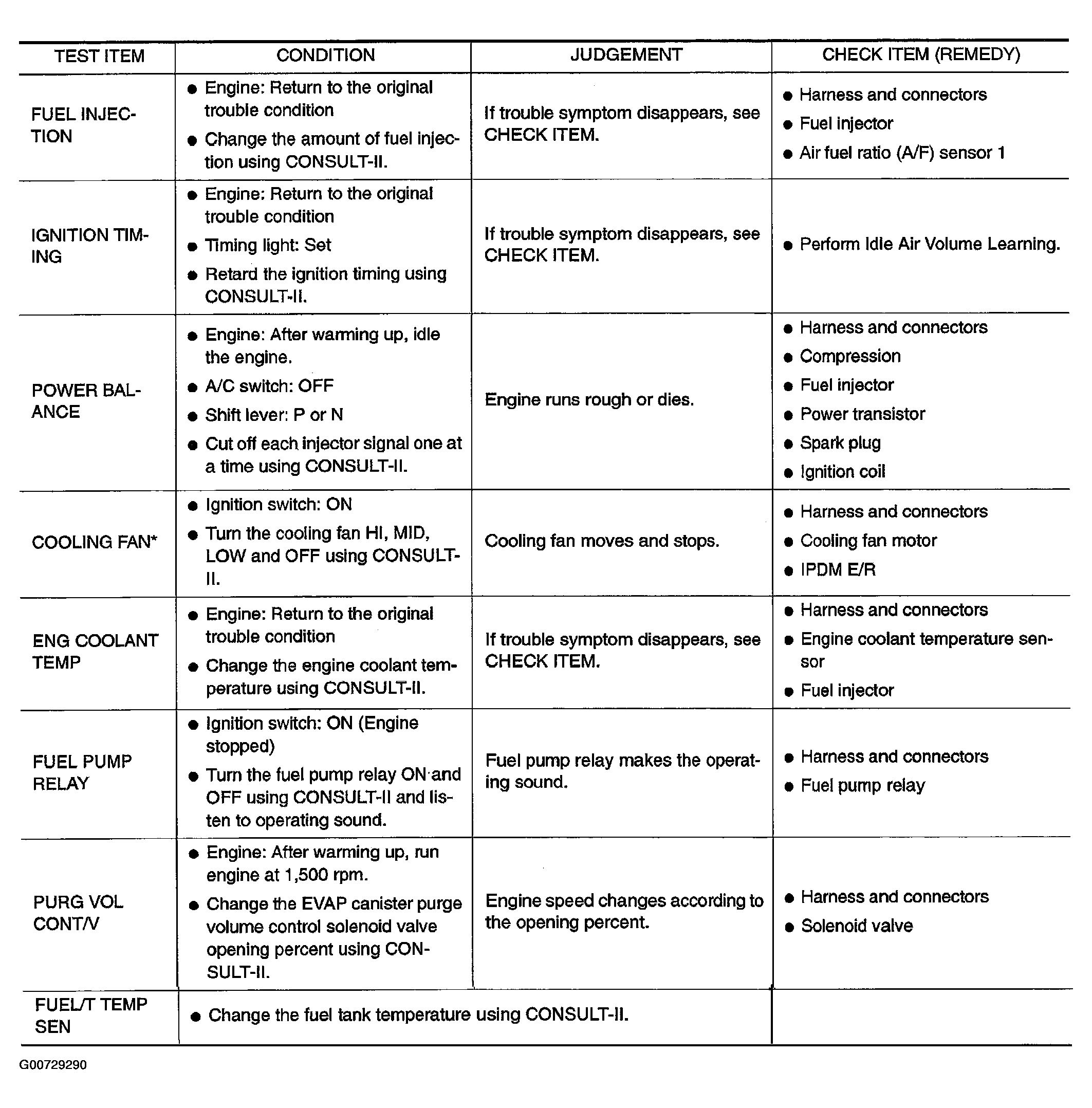

Fig 1: Describing Items Monitored By CONSULT-II In Active Test Mode (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

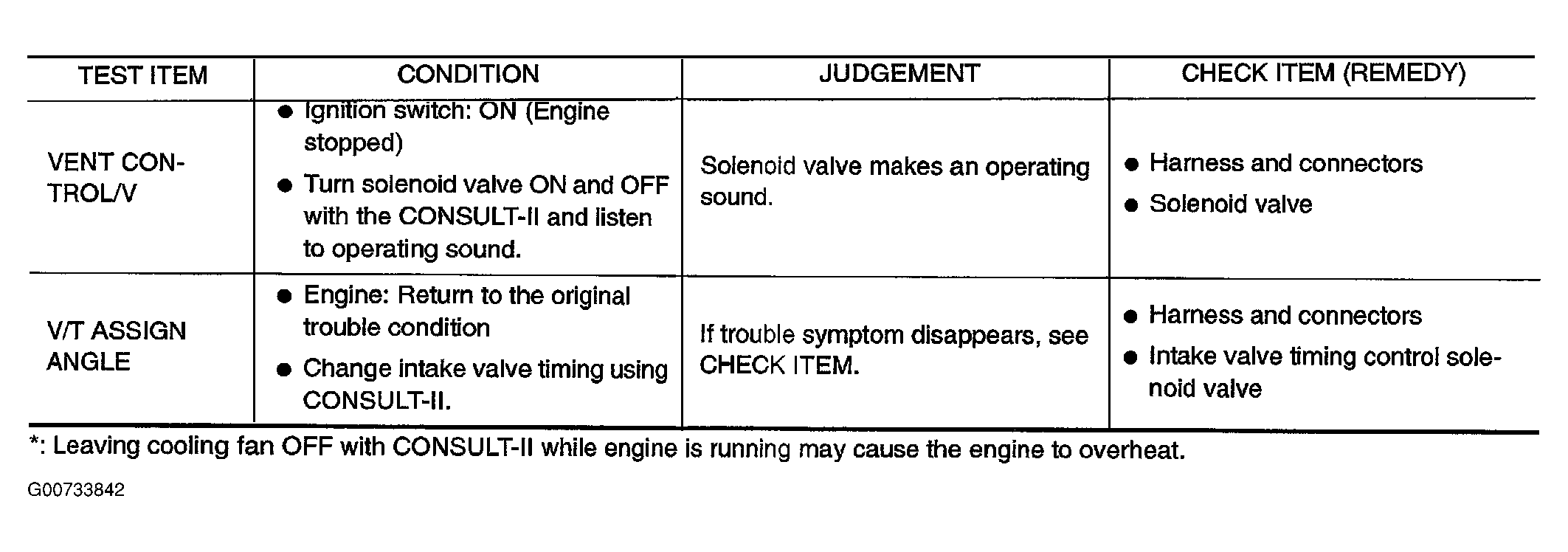

Fig 2: Describing Items Monitored By CONSULT-II In Active Test Mode (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
