Work Support Mode
Work Item

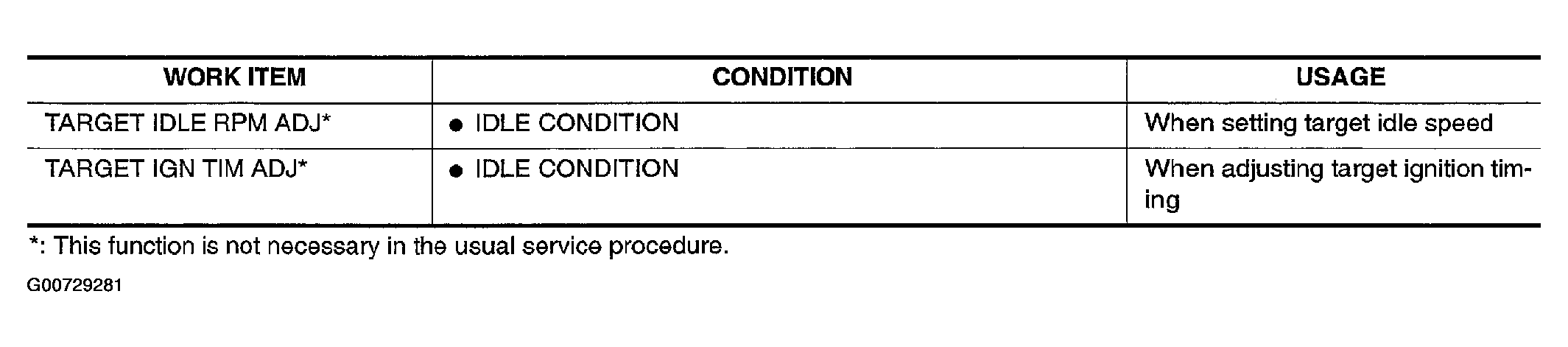

Fig 1: Identifying & Describing Work Support Modes Supported By CONSULT-II (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

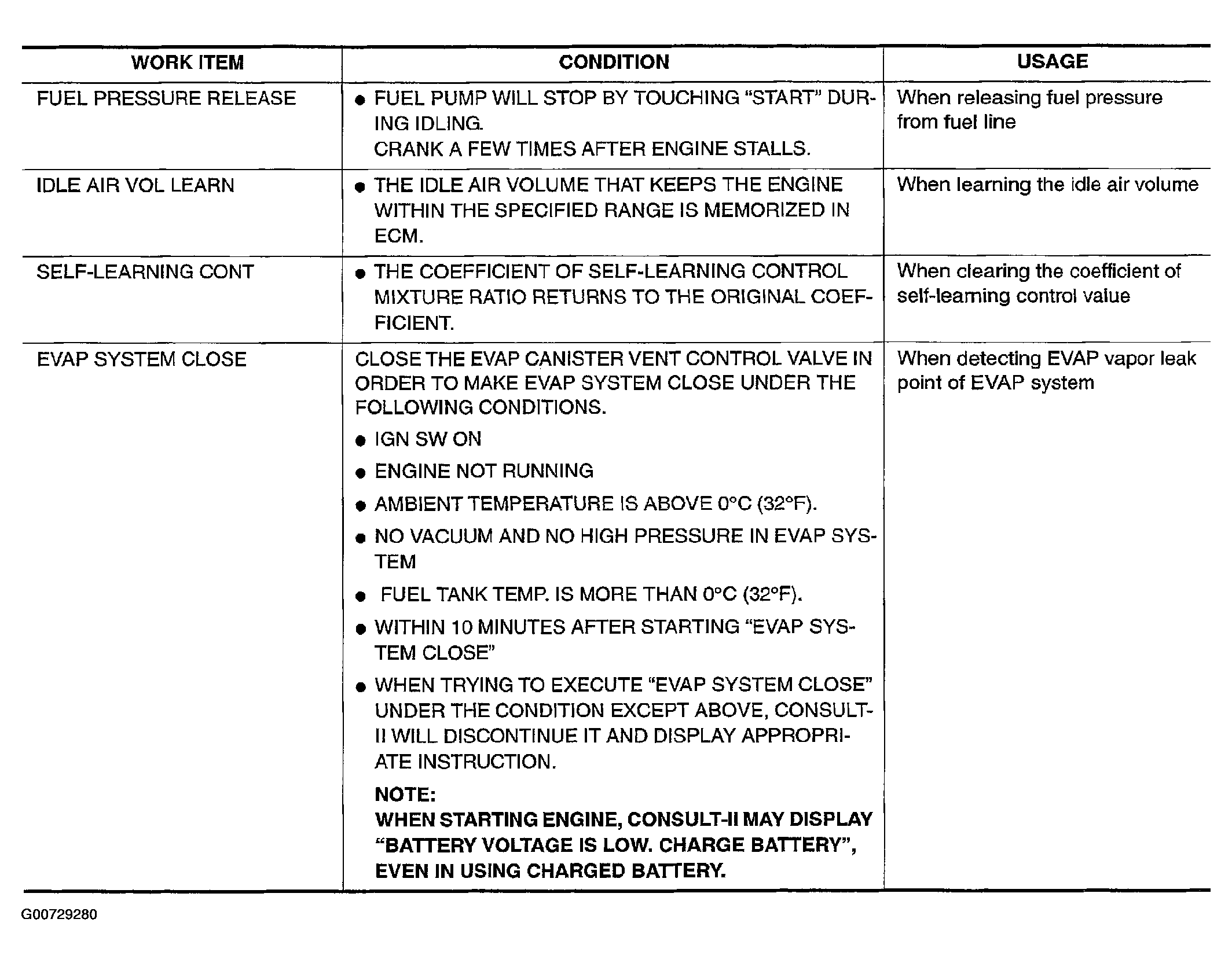

Fig 2: Identifying & Describing Work Support Modes Supported By CONSULT-II (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
