Infiniti
>>
2004
>>
FX35 RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
Circuit Diagram
Circuit Diagram

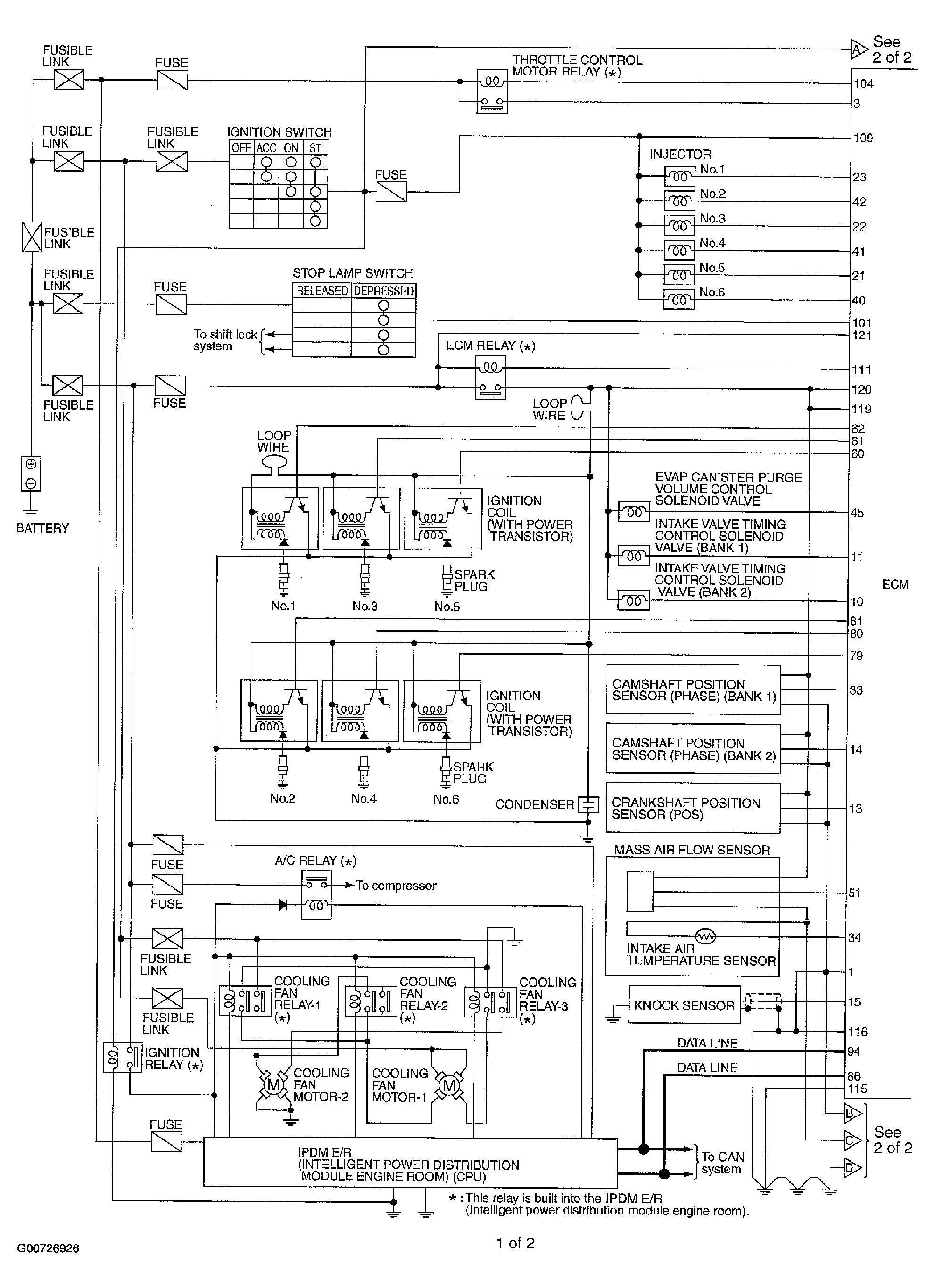

Fig 1: Engine Control Circuit (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

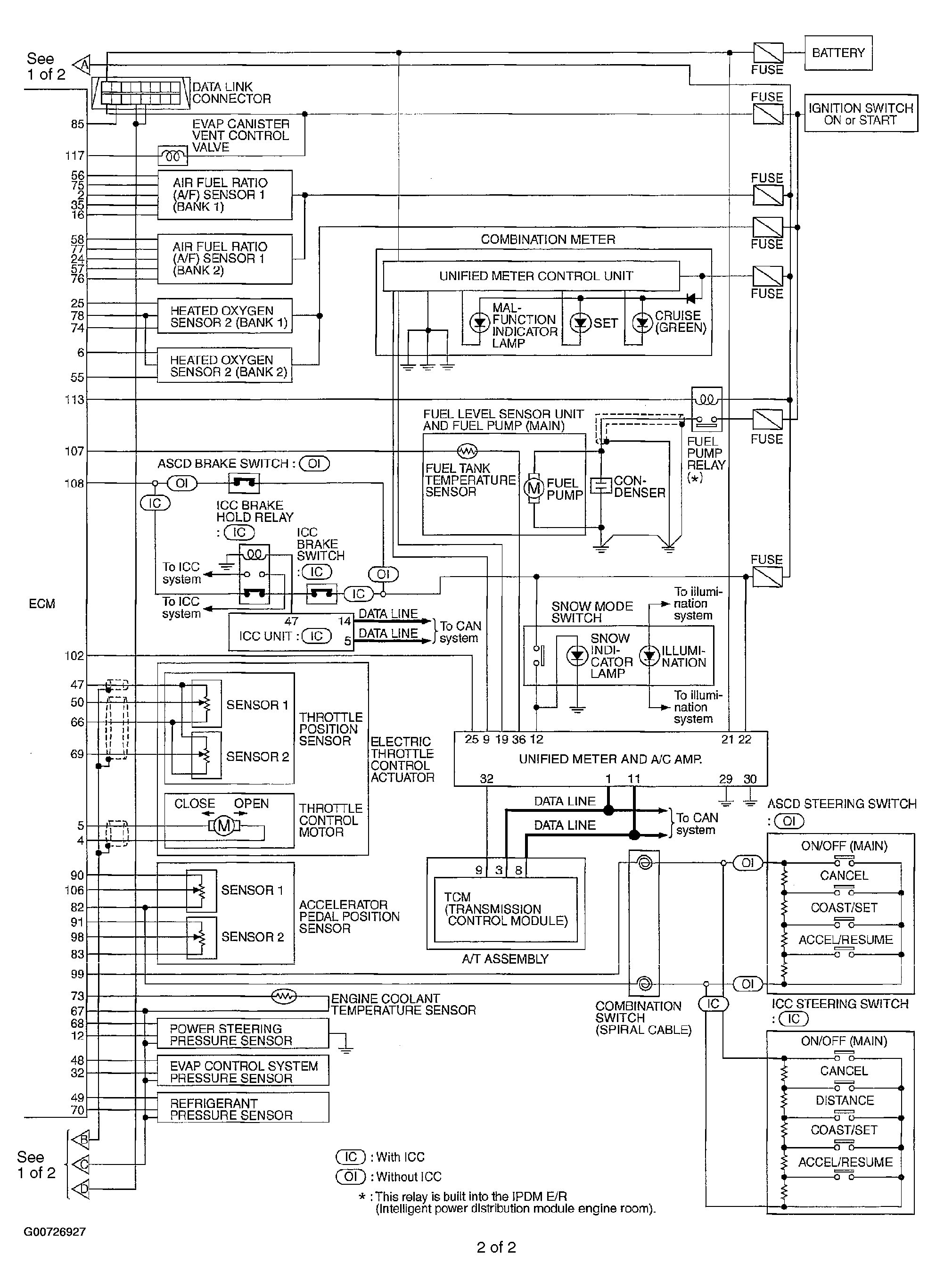

Fig 2: Engine Control Circuit (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
