Component Description
The intake air temperature sensor is built into mass air flow sensor. See Figure.
The sensor detects intake air temperature and transmits a signal to the ECM.
The temperature sensing unit uses a thermistor which is sensitive to the change in temperature. Electrical resistance of the thermistor decreases in response to the temperature rise.
< Reference data >

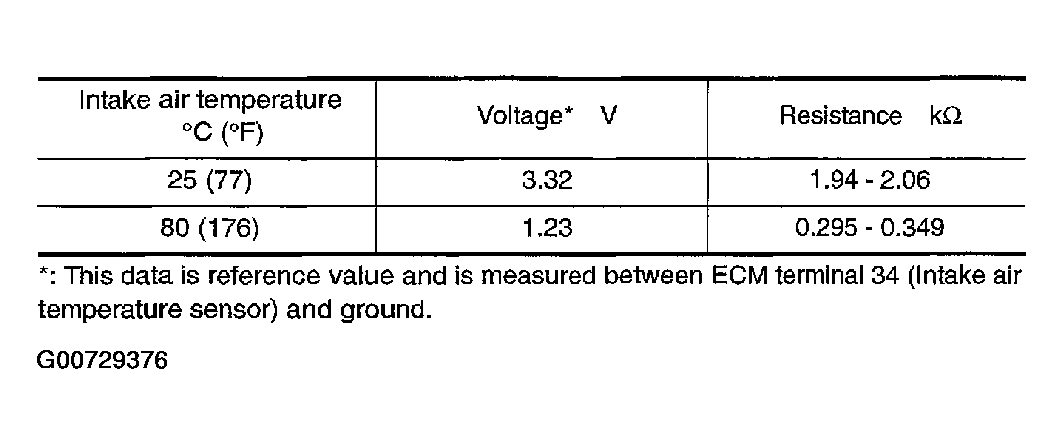

For intake air temperature specifications, see Figure and for graph of thermistor performance, see Figure.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
