Home >> Infiniti >> 2004 >> FX35 RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> Ignition Signal >> Component Inspection >> Condenser

Component Inspection: Condenser

  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals 1 and 2.

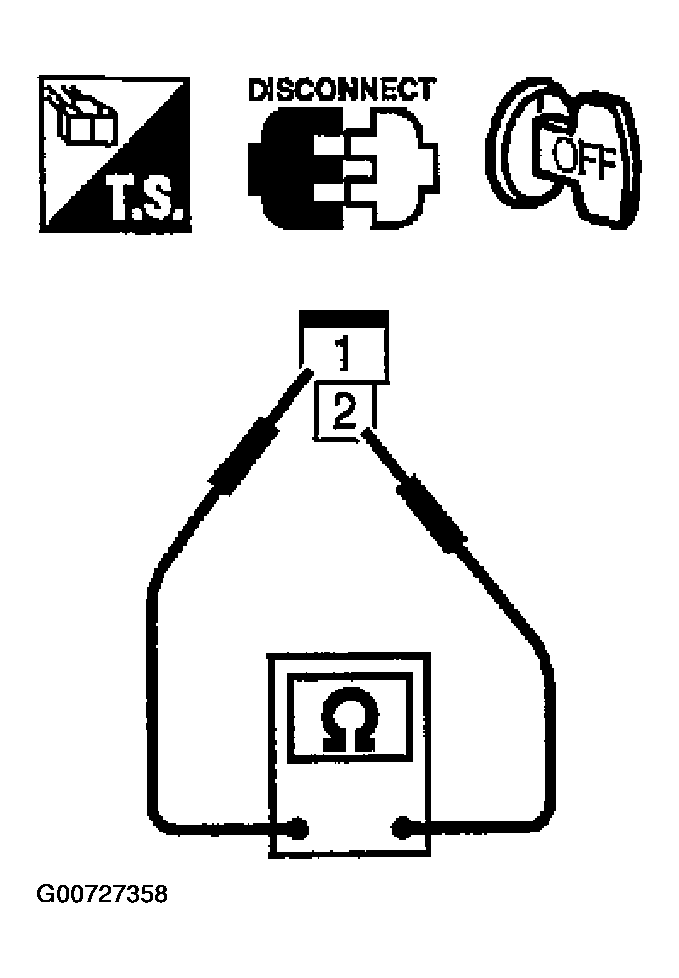

    Fig 1: Testing Condenser
    G00727358Courtesy of NISSAN MOTOR CO., U.S.A.

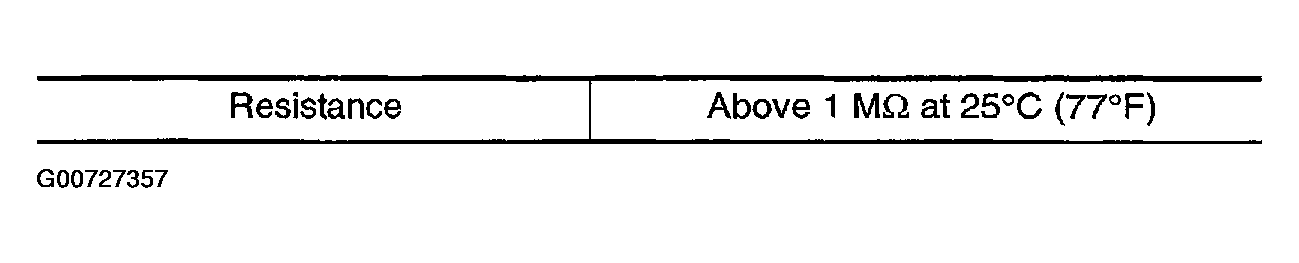

    Fig 2: Condenser Specifications
    G00727357Courtesy of NISSAN MOTOR CO., U.S.A.
