Ignition Coil With Power Transistor

  1. Turn ignition switch OFF.
  2. Disconnect ignition coil harness connector.
  3. Check resistance between ignition coil terminals as follows.

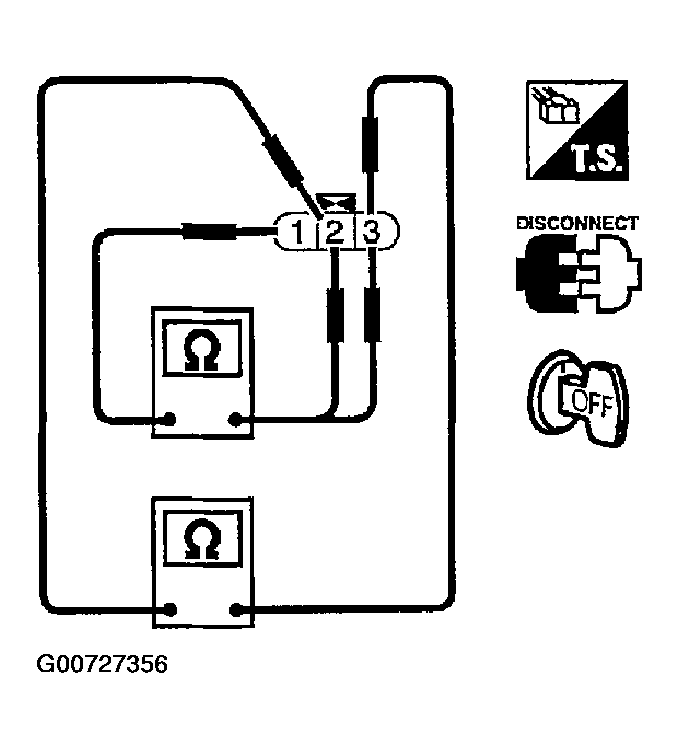

    Fig 1: Testing Ignition Coils
    G00727356Courtesy of NISSAN MOTOR CO., U.S.A.

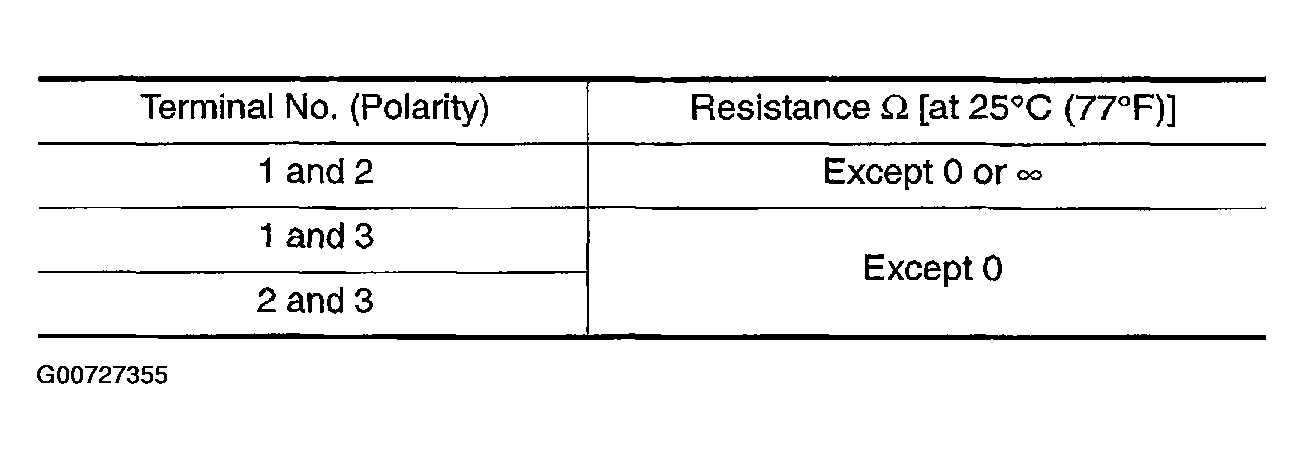

    Fig 2: Identifying Ignition Coils Specifications
    G00727355Courtesy of NISSAN MOTOR CO., U.S.A.
