Component Inspection: Injector

  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in Fig 1.

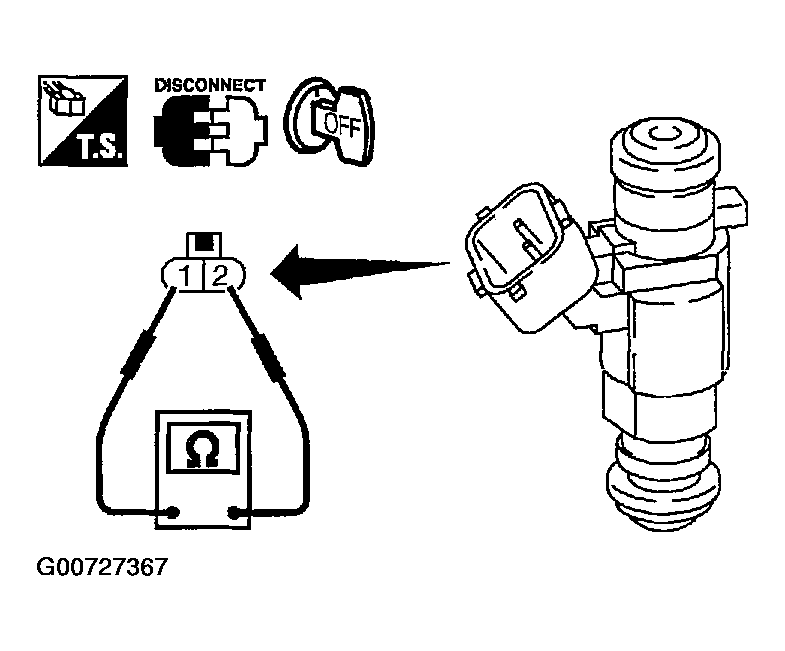

    Fig 1: Testing Injector Resistance
    G00727367Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Resistance: 13.5 - 17.5ohm [at 10 - 60° C (50 - 140° F)]
