System --- Basic Engine Control System

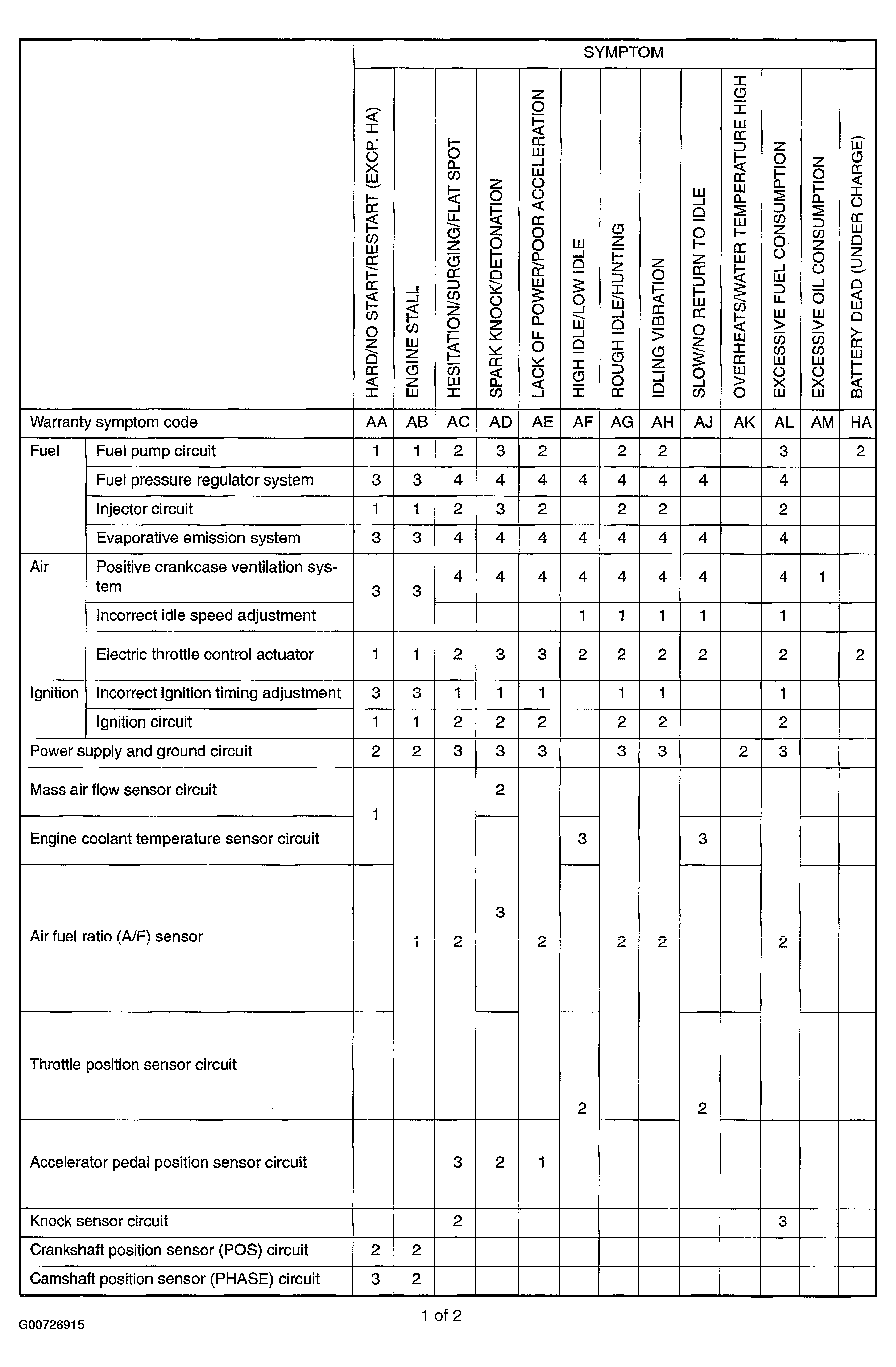

Fig 1: Isolating Engine Control System Symptoms (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

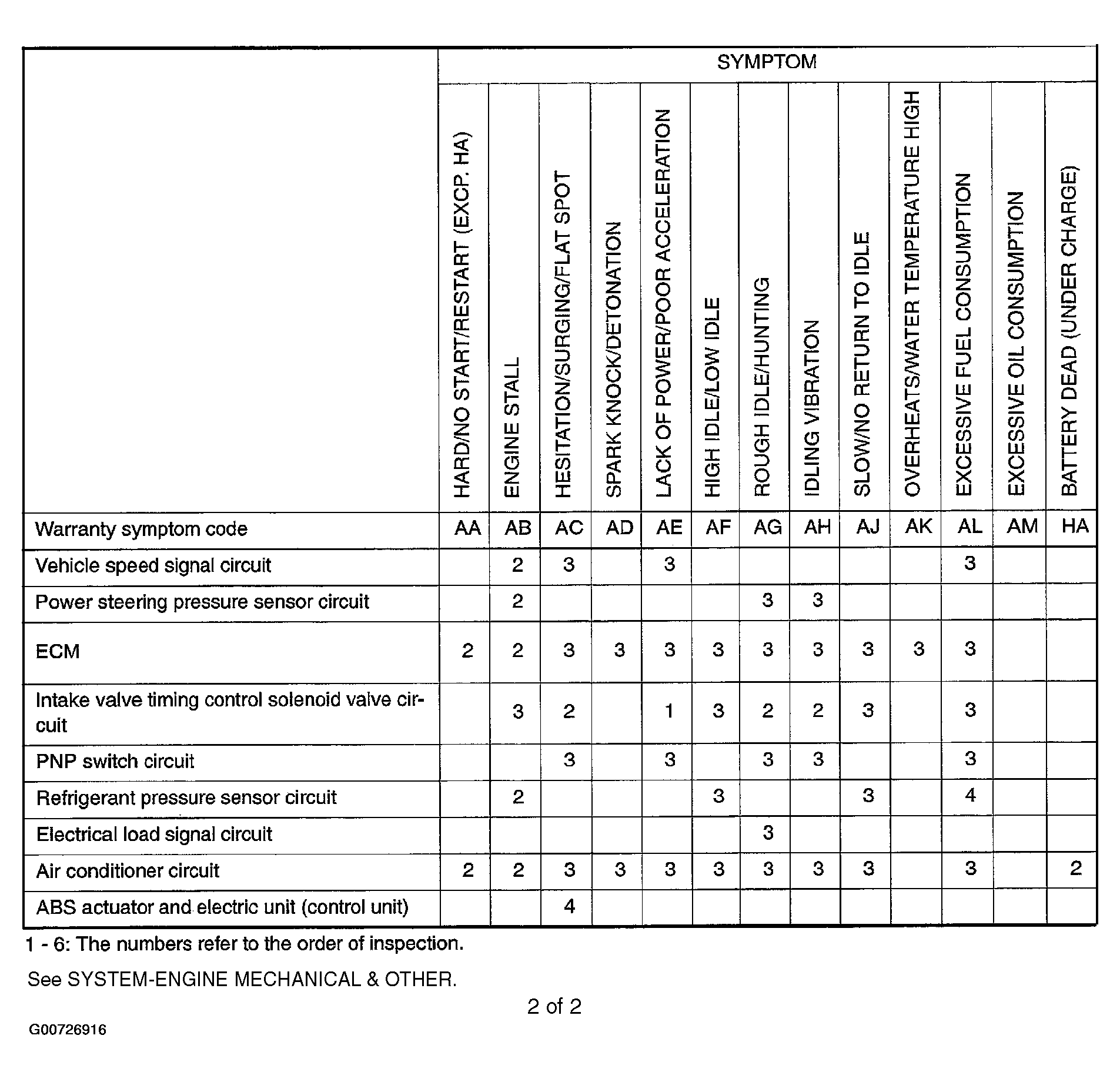

Fig 2: Isoltating Engine Control System Symptoms (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
