Removal And Installation: Removal

WARNING: Be sure to read "General Precautions" when working on the fuel system. Refer to GENERAL PRECAUTIONS  .
  1. Perform steps  2 - 7 of "REMOVAL" in "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY" on main and sub fuel level sensor units.
  2. Remove tunnel stay. Refer to REMOVAL & INSTALLATION .
  3. Remove exhaust front tube, center muffler and main muffler. Refer to EXHAUST SYSTEM .
  4. Remove insulator.
  5. Remove propeller shaft. Refer to REAR PROPELLER SHAFT .
  6. Remove parking rear brake cables. Refer to PARKING BRAKE CONTROL .
  7. Remove rear suspension assembly. Refer to REMOVAL & INSTALLATION .
  8. Remove fuel tank protector.
  9. Disconnect fuel filler hose, vent hose and EVAP hoses at fuel tank side.

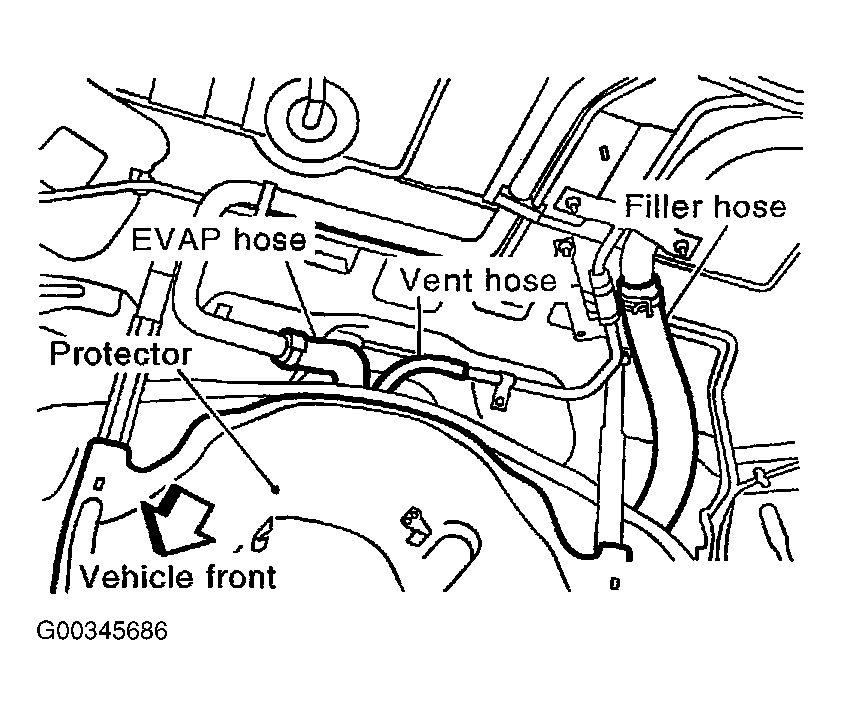

    Fig 1: Locating Fuel Filler Hose Vent Hose & EVAP Hoses
    G00345686Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove fuel tank mounting band bolts while supporting fuel tank.

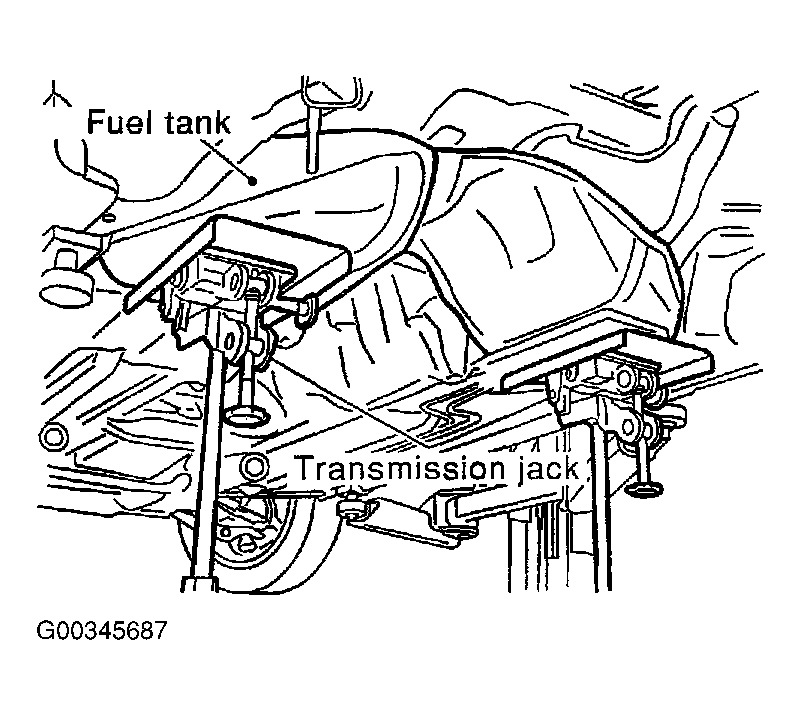

    Fig 2: Locating Fuel Tank
    G00345687Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove fuel tank.
