ASCD Steering Switch

  1. Disconnect ASCD steering switch.
  2. Check continuity between terminals 1 and 2 by pushing each switch.

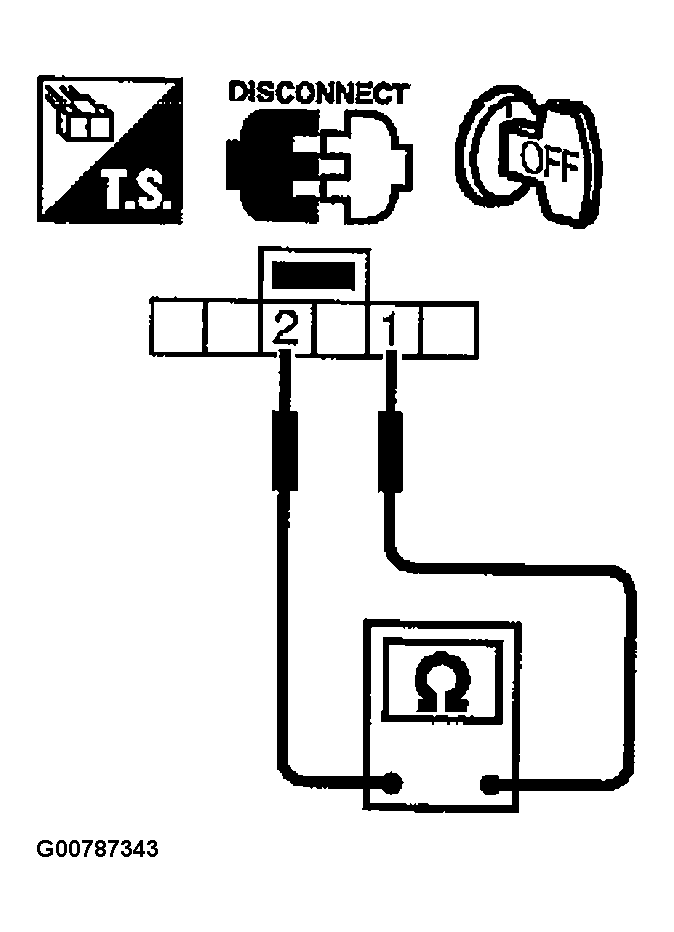

    Fig 1: Checking Continuity Between Terminals 1 And 2
    G00787343Courtesy of NISSAN MOTOR CO., U.S.A.

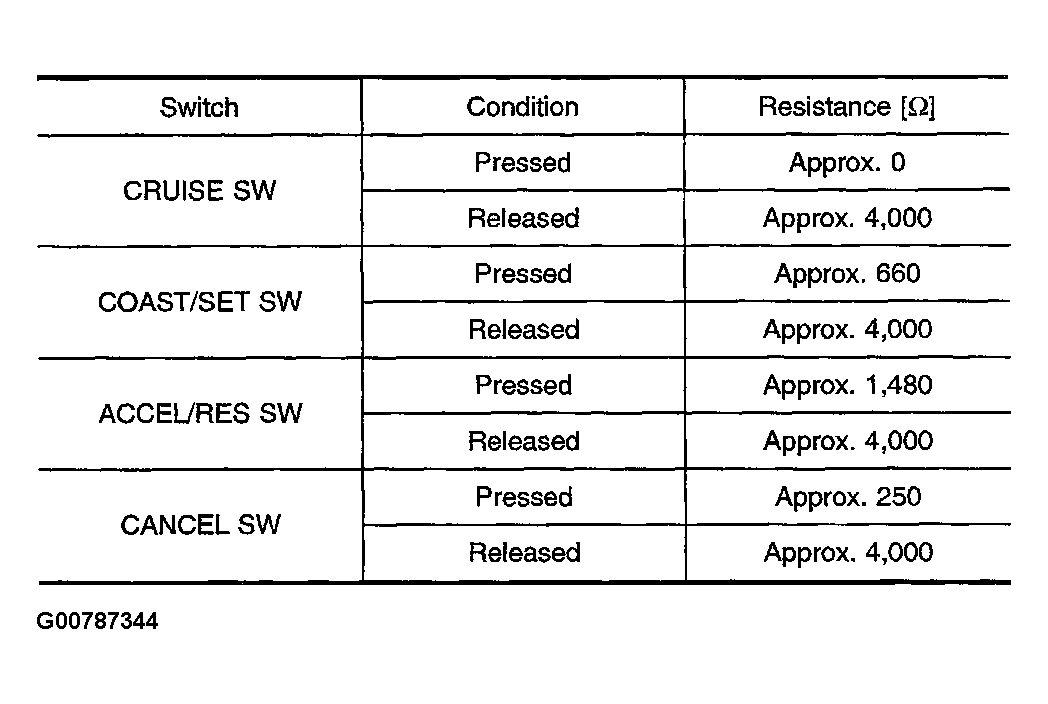

    Fig 2: ASCD Steering Switch Resistance Specifications
    G00787344Courtesy of NISSAN MOTOR CO., U.S.A.
