ASCD Brake Switch And Stop Lamp Switch

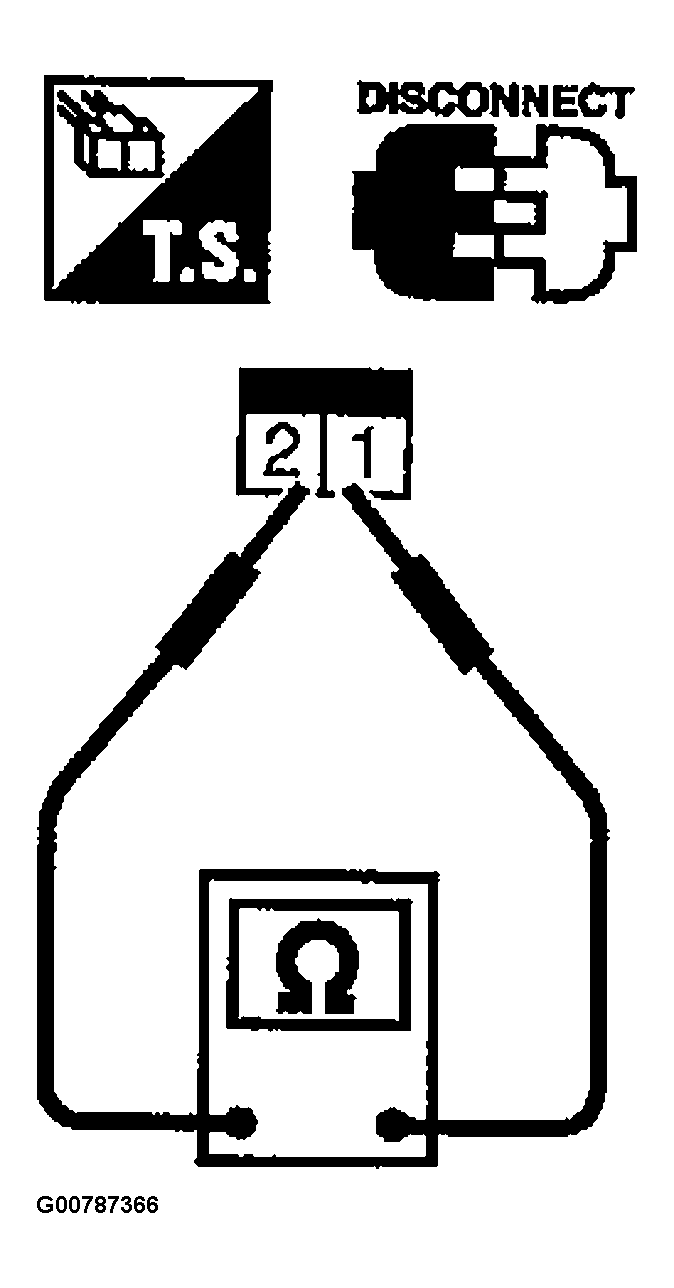

Fig 1: Checking Continuity Between ASCD Brake Switch Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

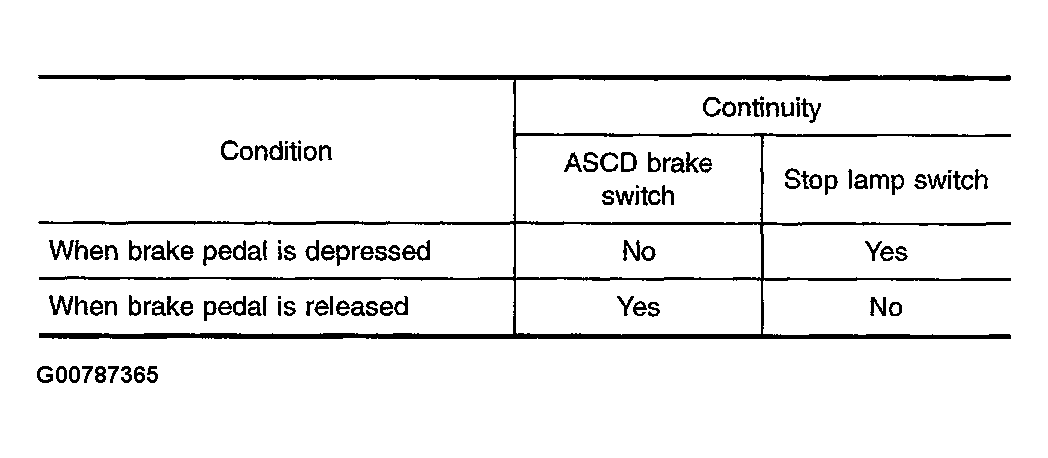

Fig 2: Checking Continuity Between Stop Lamp and Brake Switch Based On Conditions

Courtesy of NISSAN MOTOR CO., U.S.A.

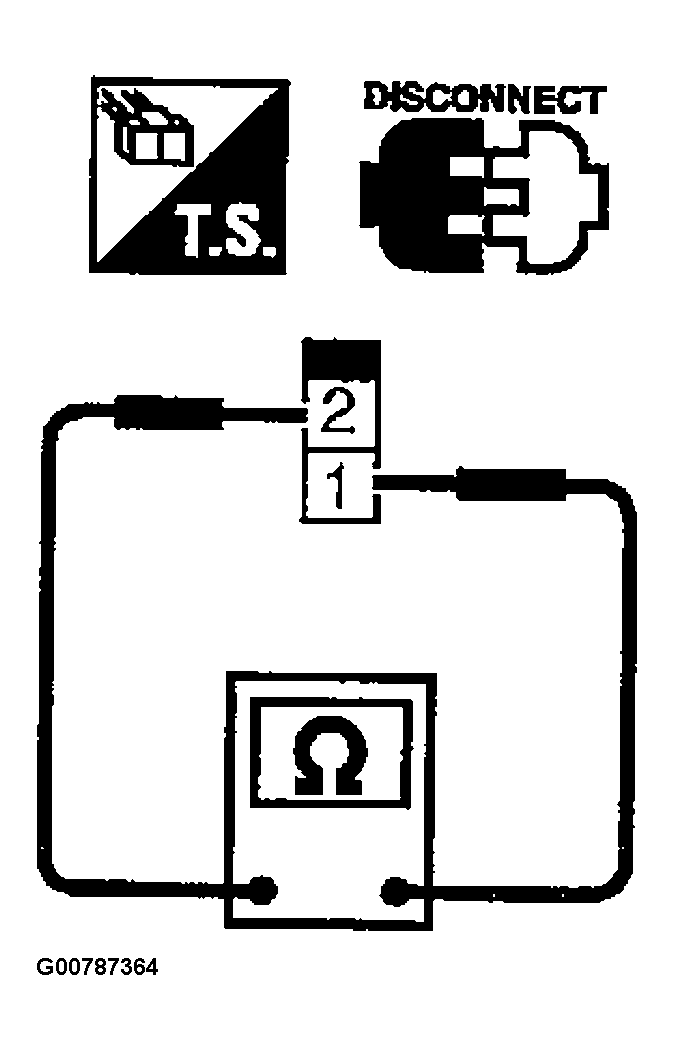

Fig 3: Checking Continuity Between ASCD Brake Switch Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

Check each switch after adjusting brake pedal - refer to BR section.
