Data Link Connectors: Wiring Diagram

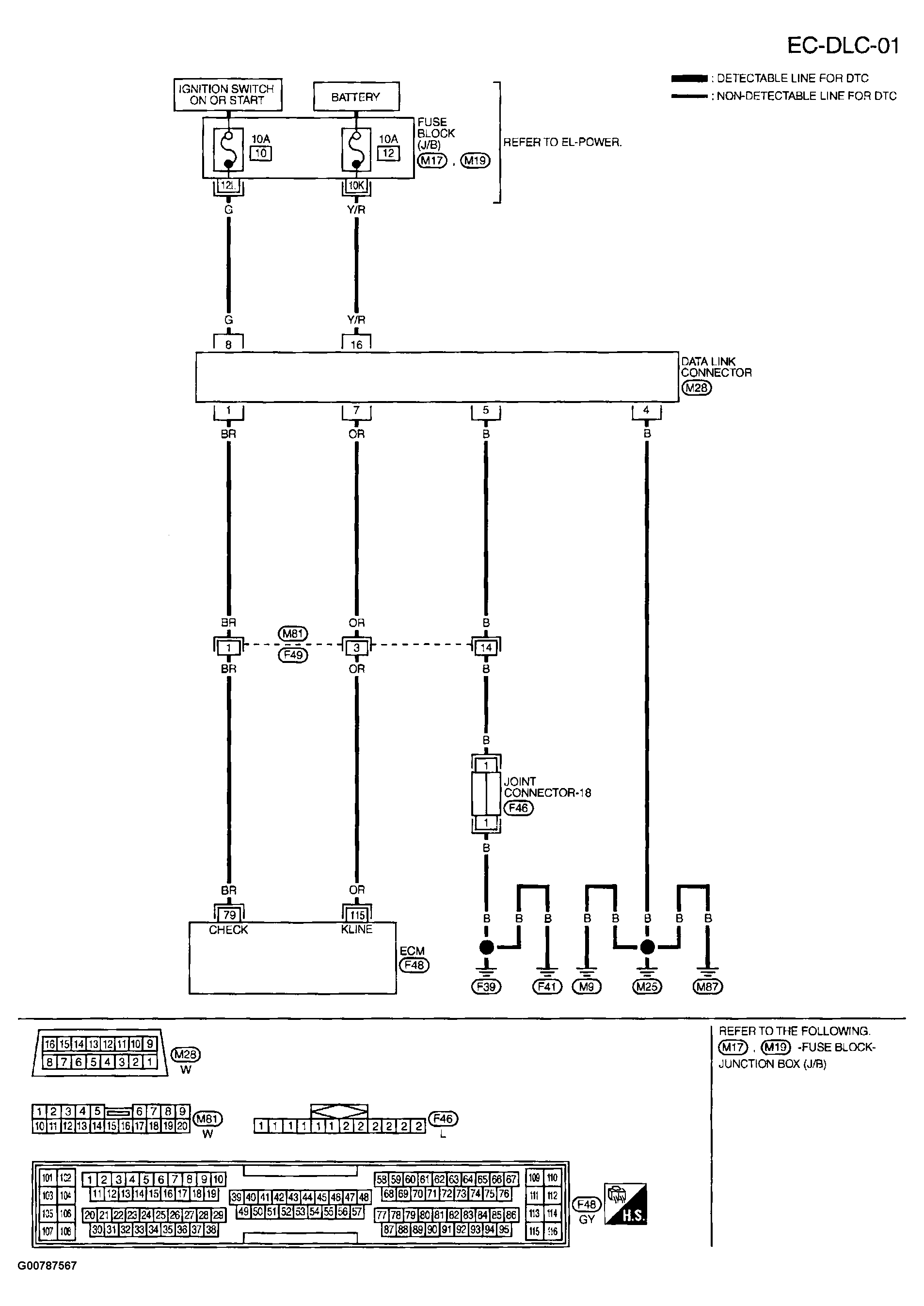

Fig 1: Displaying Wiring Diagram (EC-DLC-01)

G00787567

Courtesy of NISSAN MOTOR CO., U.S.A.
