System Description

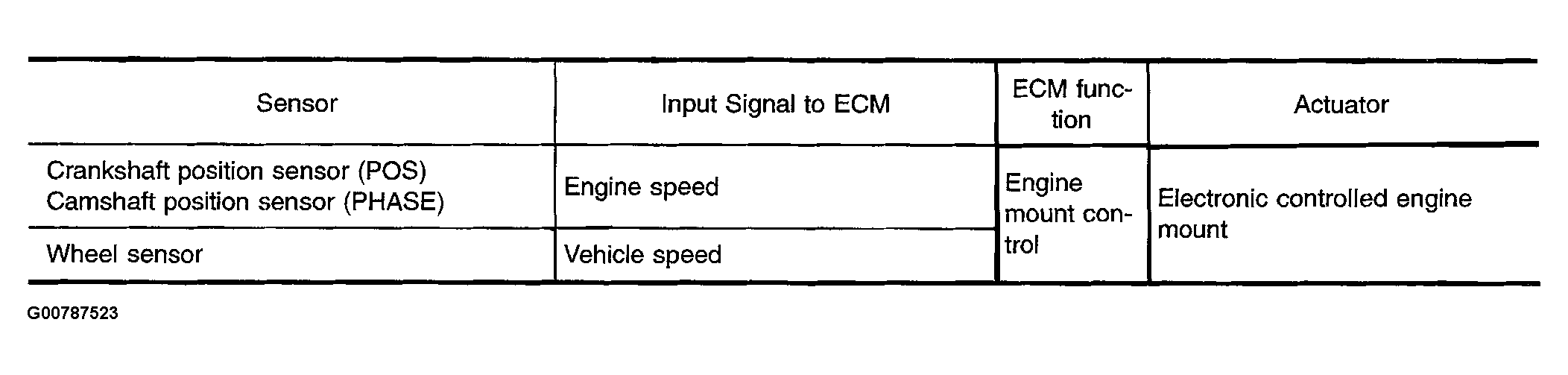

Fig 1: Electronic Controlled Engine Mount System Description

Courtesy of NISSAN MOTOR CO., U.S.A.

The ECM controls the engine mount operation corresponding to the engine speed and the vehicle speed. The control system has 2-step control [soft/hard].

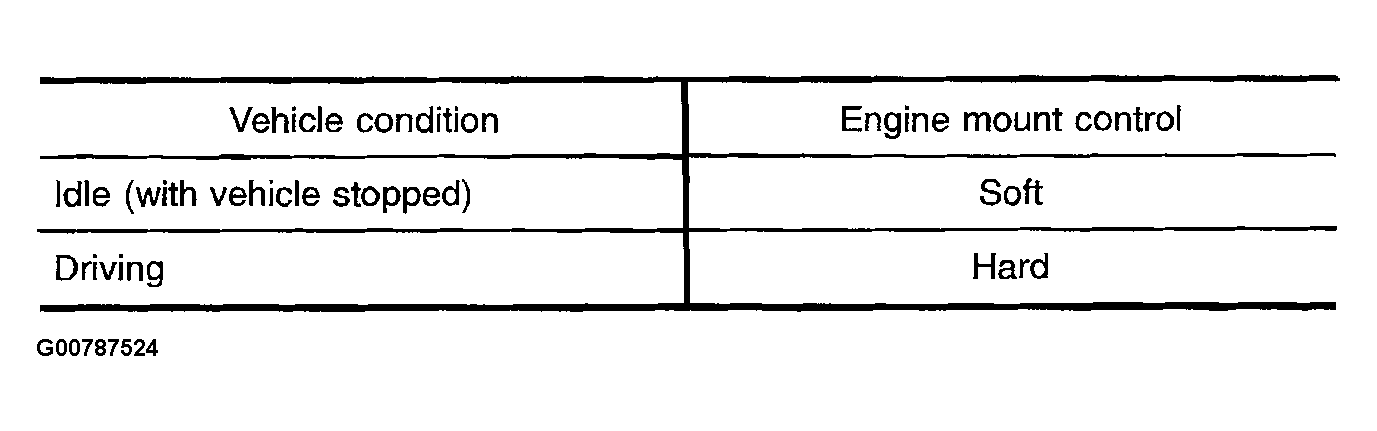

Fig 2: Displaying ECM Vehicle Condition

Courtesy of NISSAN MOTOR CO., U.S.A.
