Vacuum Hose Drawing

Refer to SYSTEM DIAGRAM  for Vacuum control system.

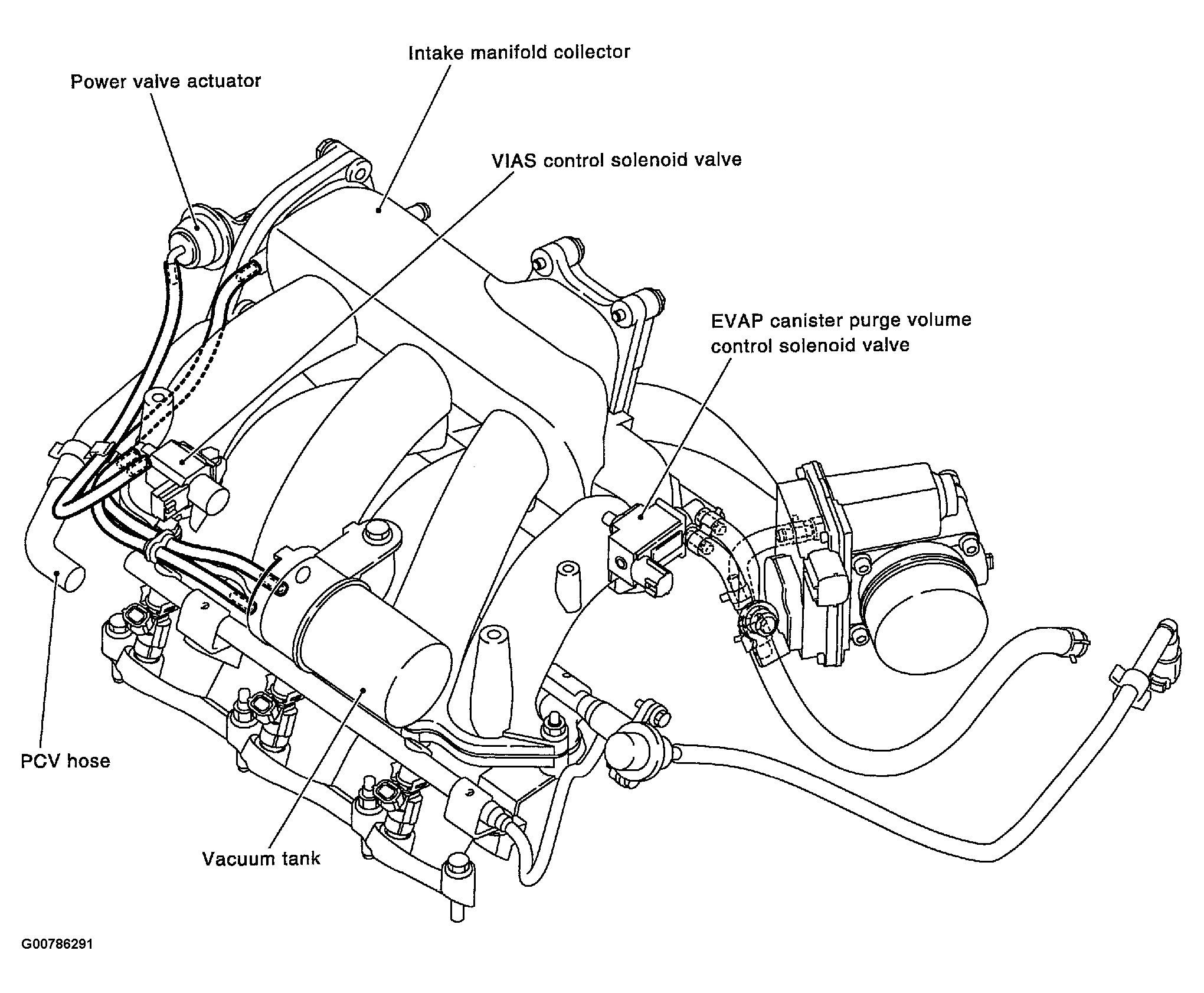

Fig 1: Identifying Vacuum Control System Components
G00786291Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hose.
