Trouble Diagnosis - Specification Value
>>
Diagnostic Procedure
Diagnostic Procedure

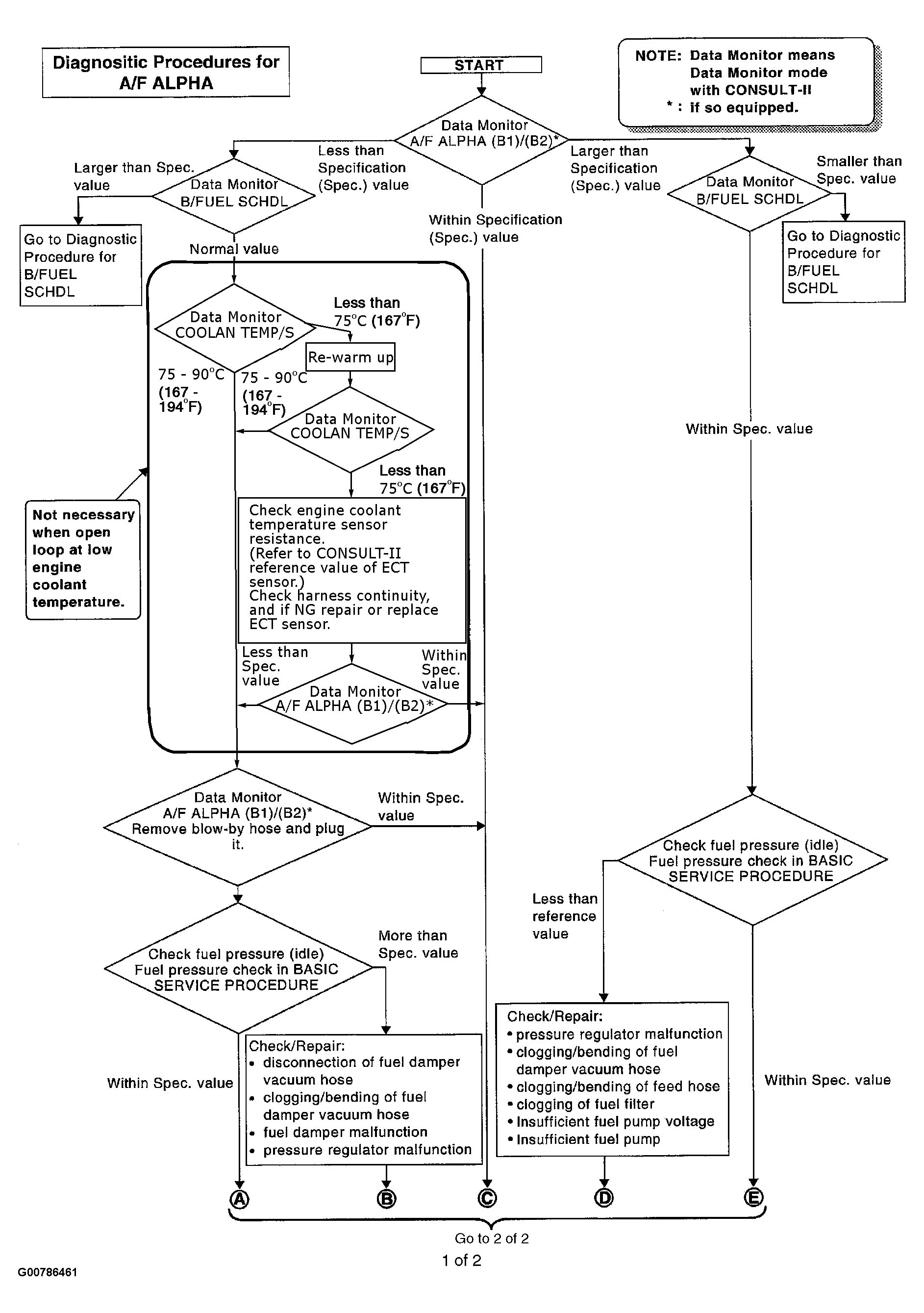

Fig 1: Displaying Diagnostic Procedure Flow Chart (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

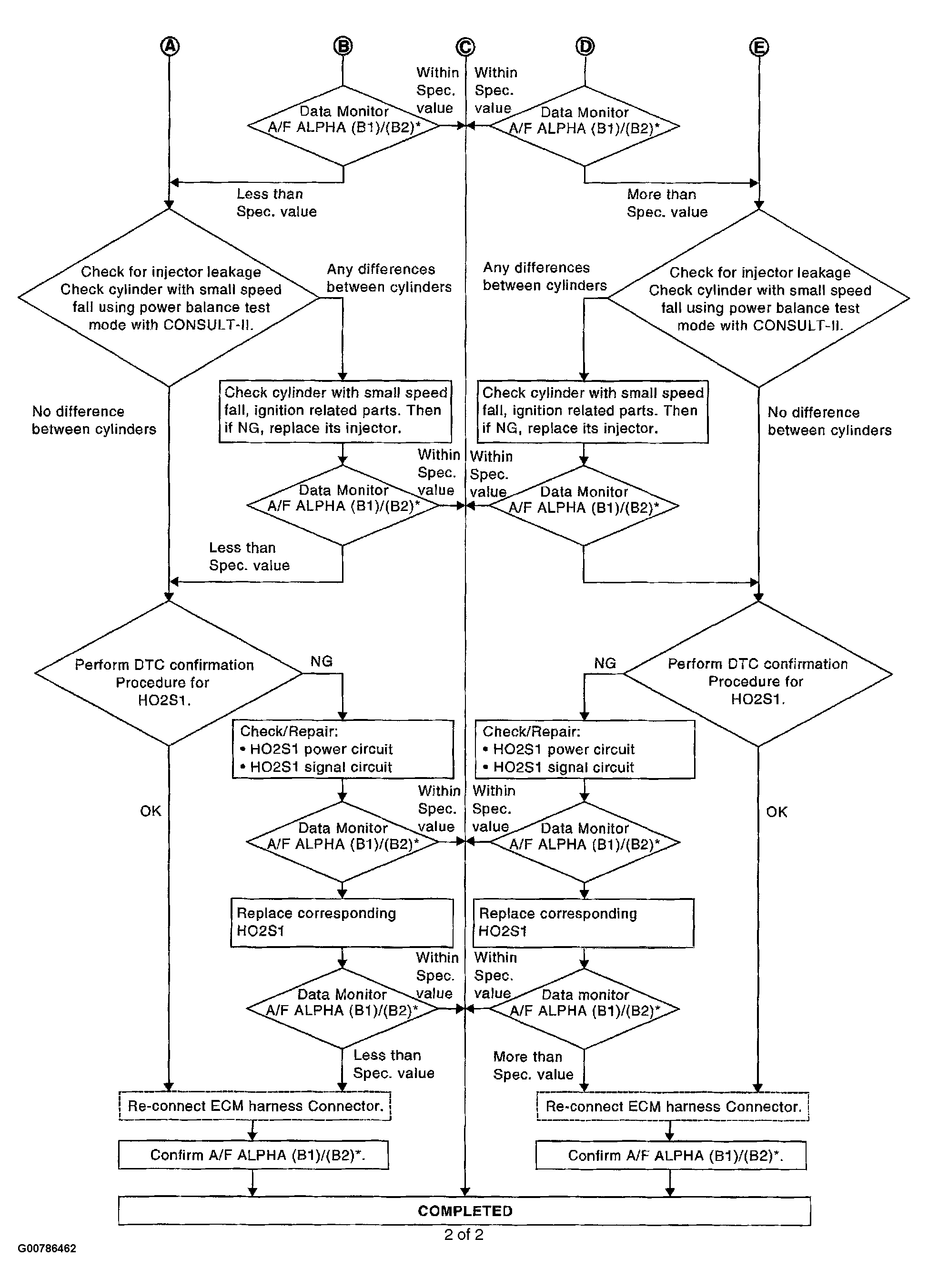

Fig 2: Displaying Diagnostic Procedure Flow Chart (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

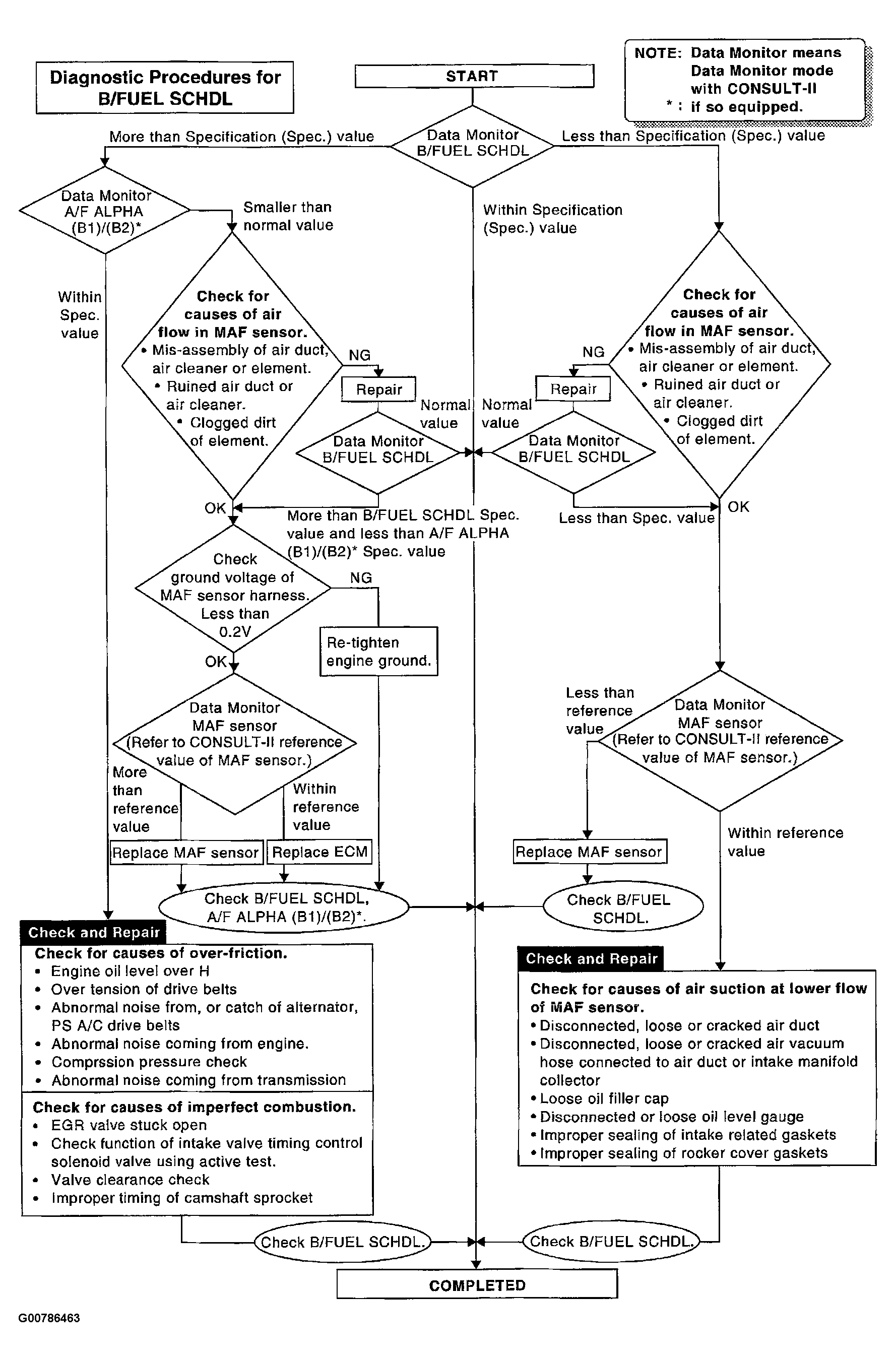

Fig 3: Displaying Diagnostic Procedure Flow Chart (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
