Input/Output Signal Chart

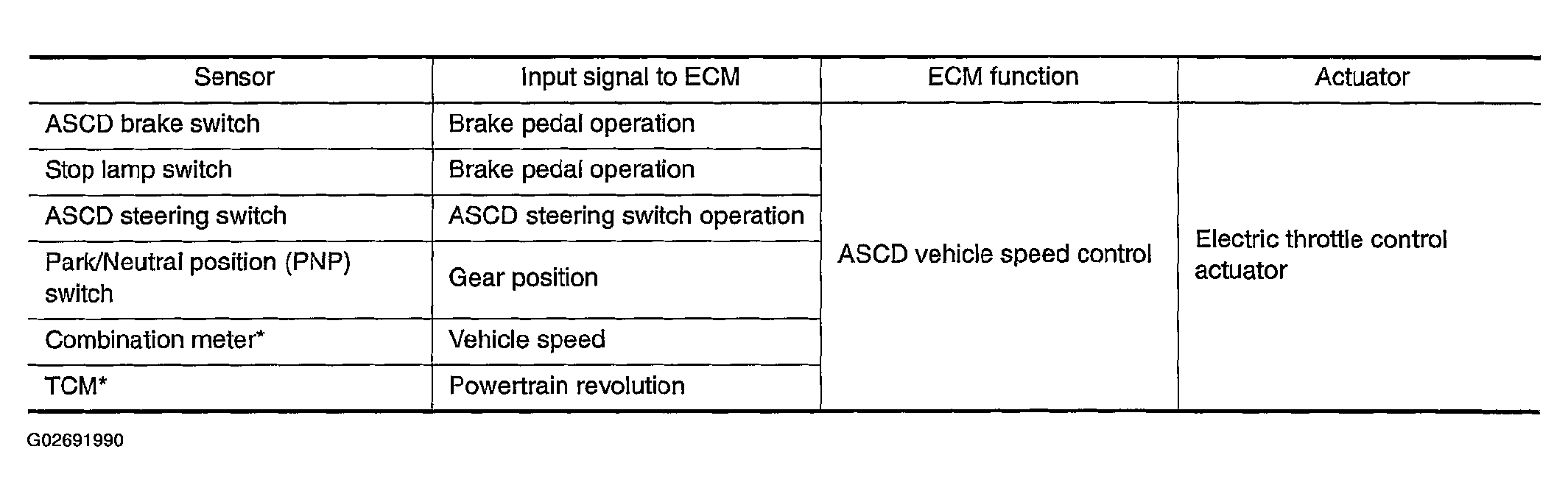

Fig 1: Input/Output Signal Chart

G02691990

Courtesy of NISSAN MOTOR CO., U.S.A.

This signal is sent to the ECM through CAN communication line.
