Home >> Infiniti >> 2004 >> QX56 RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System >> Basic Service Procedure >> Fuel Pressure Check >> Fuel Pressure Release >> With Consult-II

With Consult-II

  1. Turn ignition switch ON.
  2. Perform "FUEL PRESSURE RELEASE" in "WORK SUPPORT" mode with CONSULT-II.
  3. Start engine.
  4. After engine stalls, crank it two or three times to release all fuel pressure.
  5. Turn ignition switch OFF.

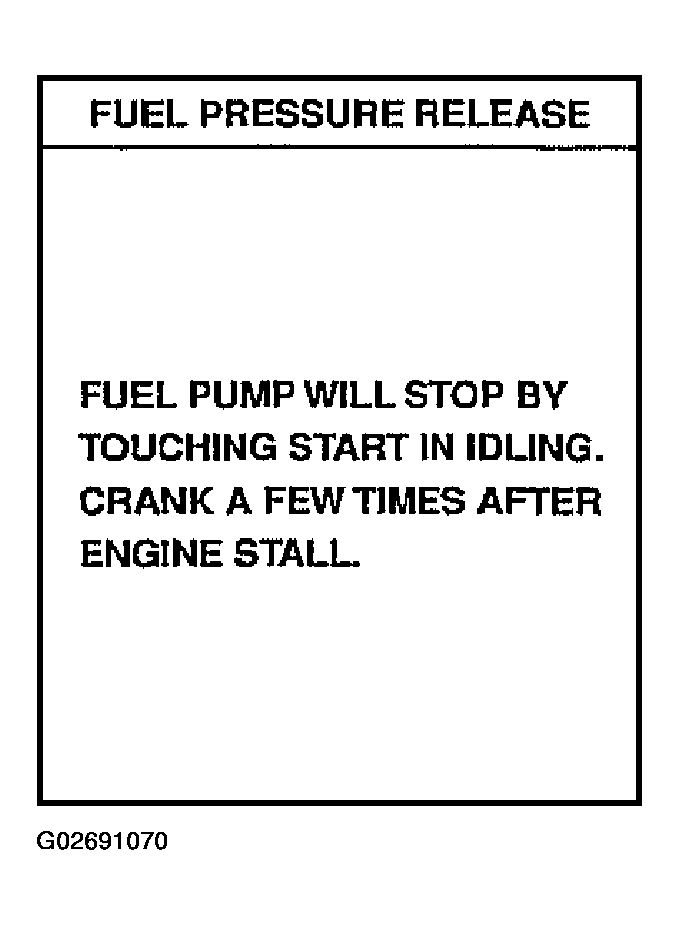

    Fig 1: Display Fuel Pressure Release - With Consult-II
    G02691070Courtesy of NISSAN MOTOR CO., U.S.A.
