Home >> Infiniti >> 2004 >> QX56 RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System >> Basic Service Procedure >> Idle Speed and Ignition Timing Check >> Ignition Timing >> Method A

Method A

  1. Attach timing light to loop wire as shown.
  2. Check ignition timing.

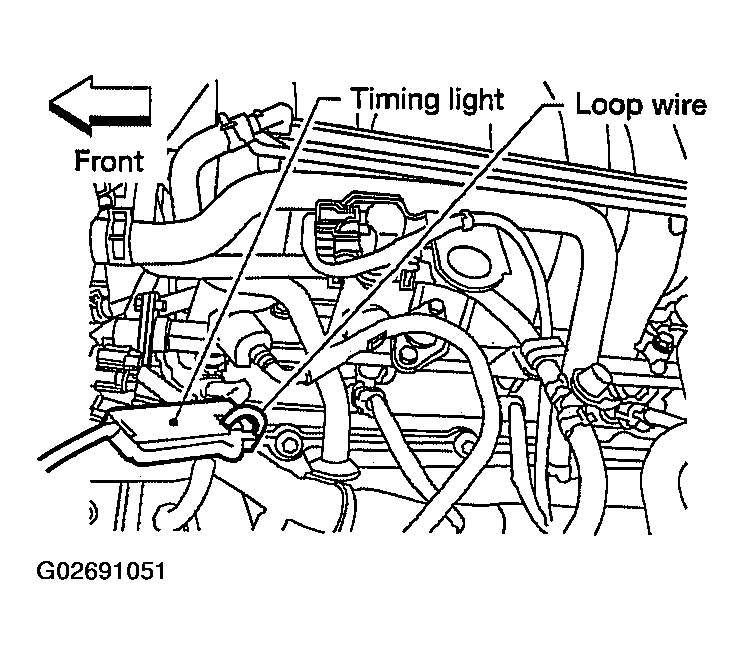

    Fig 1: Attaching Timing Light To Loop Wire
    G02691051Courtesy of NISSAN MOTOR CO., U.S.A.
