Home >> Infiniti >> 2004 >> QX56 RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System >> DTC P0117, P0118: ECT Sensor >> DTC Confirmation Procedure >> With Consult-II

With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Wait at least 5 seconds.
  4. If DTC is detected, go to DIAGNOSTIC PROCEDURE .

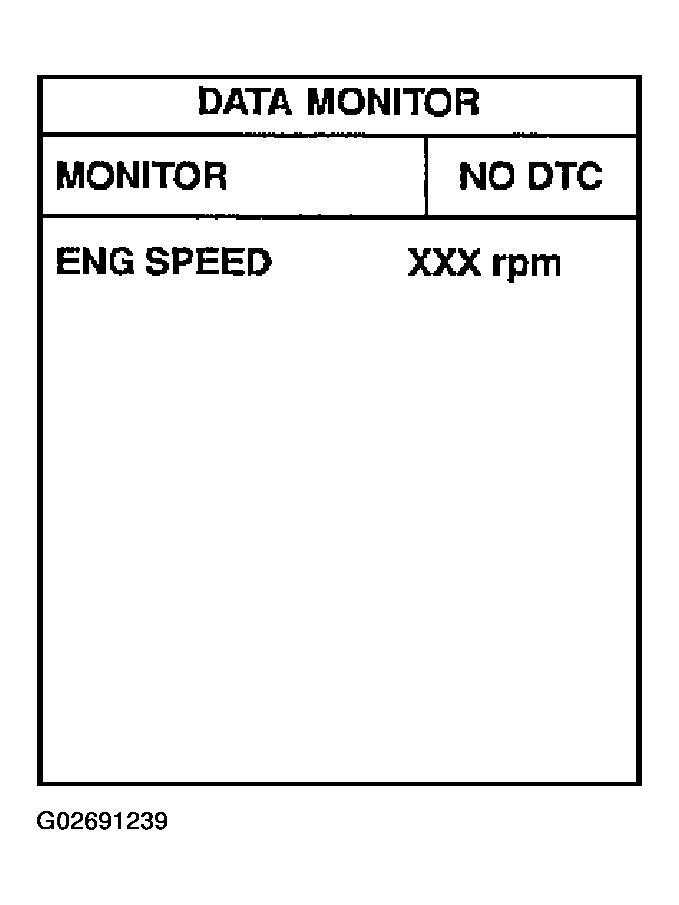

    Fig 1: Display "DATA MONITOR" Mode
    G02691239Courtesy of NISSAN MOTOR CO., U.S.A.
