With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for 1 second.
  4. If DTC is detected, go to DIAGNOSTIC PROCEDURE .

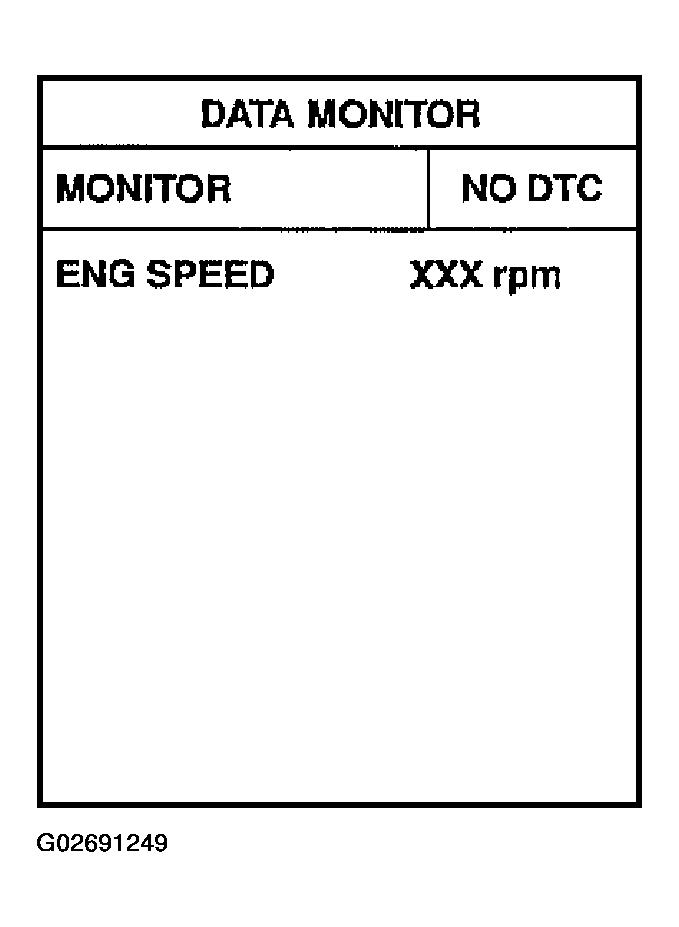

    Fig 1: Display "DATA MONITOR" Mode
    G02691249Courtesy of NISSAN MOTOR CO., U.S.A.
