Home >> Infiniti >> 2004 >> QX56 RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System >> DTC P0182, P0183: FTT Sensor >> Wiring Diagram

DTC P0182, P0183: FTT Sensor: Wiring Diagram

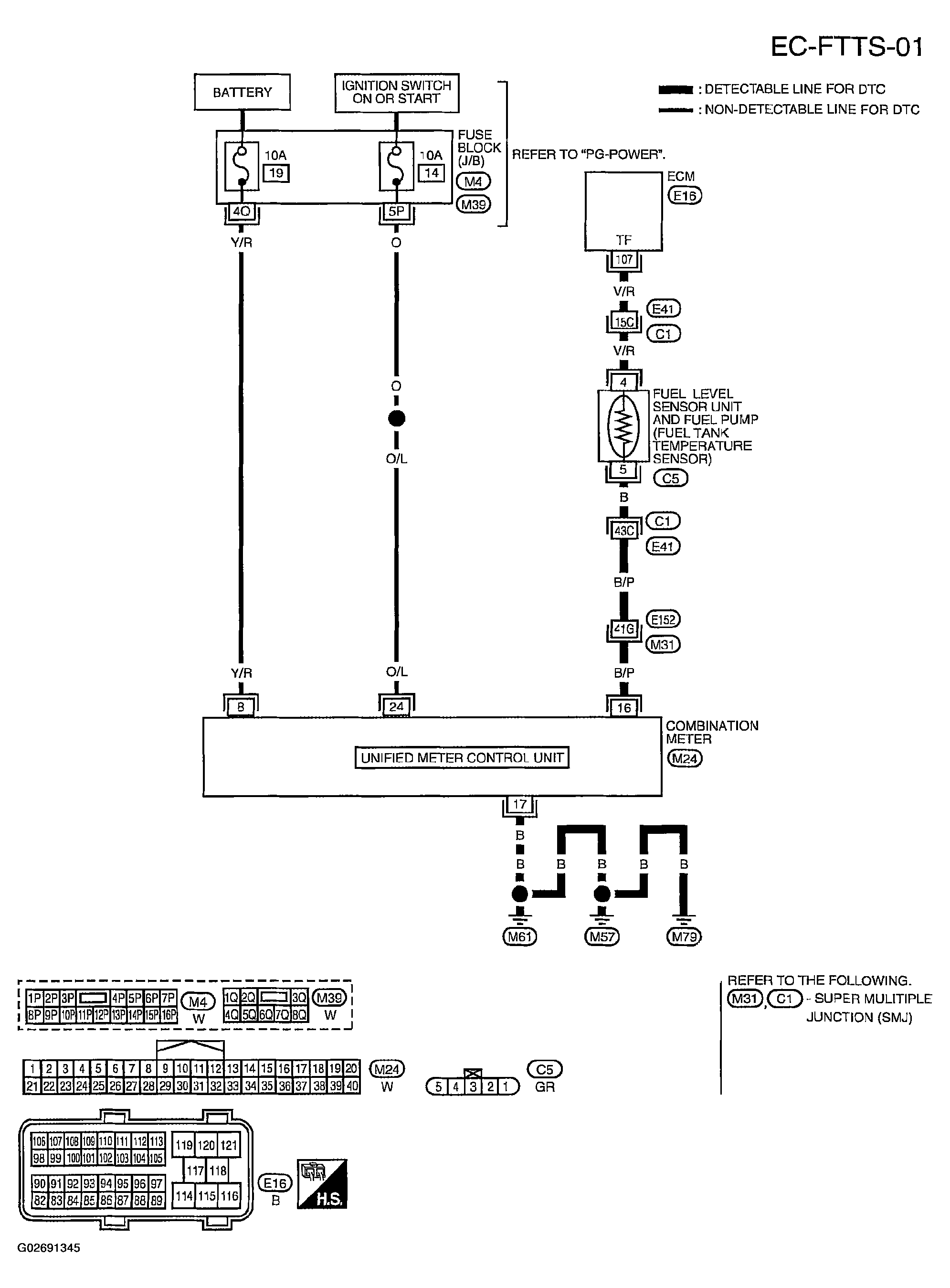

Fig 1: DTC P0182, P0183 FTT Sensor - Wiring Diagram - EC-FTTS-01

G02691345

Courtesy of NISSAN MOTOR CO., U.S.A.
