Cooling Fan Motor

  1. Disconnect cooling fan motor harness connector
  2. Supply cooling fan motor terminals with battery voltage and check operation

    Cooling fan motor should operate.

    If NG, replace cooling fan motor.

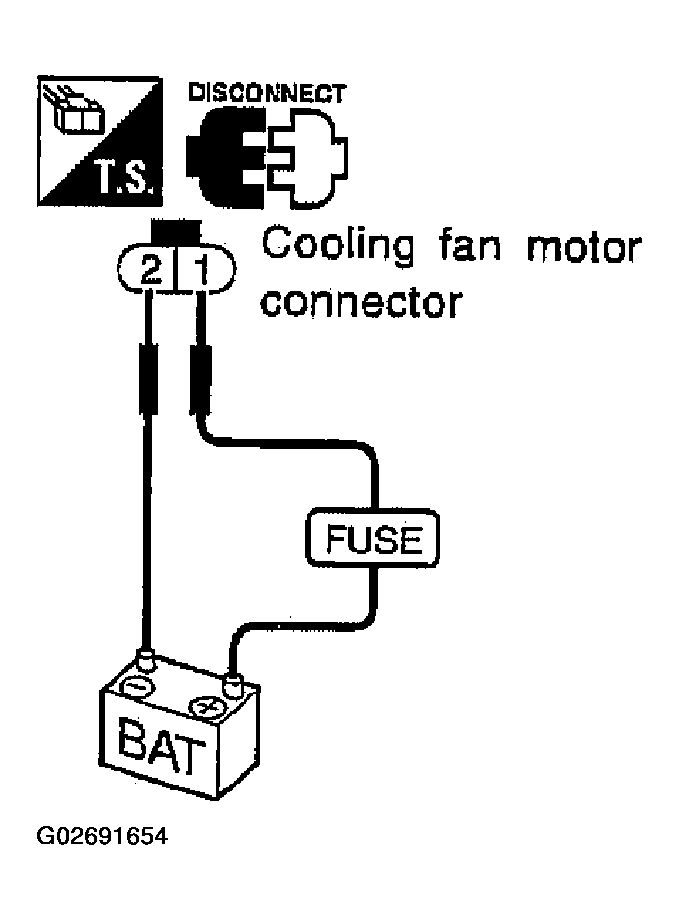

    Fig 1: Identifying Cooling Fan Motor Harness Connector
    G02691654Courtesy of NISSAN MOTOR CO., U.S.A.
