ASCD Steering Switch

  1. Disconnect combination switch (spiral cable).
  2. Check continuity between ASCD steering switch terminals 14 and 15 with pushing each switch.

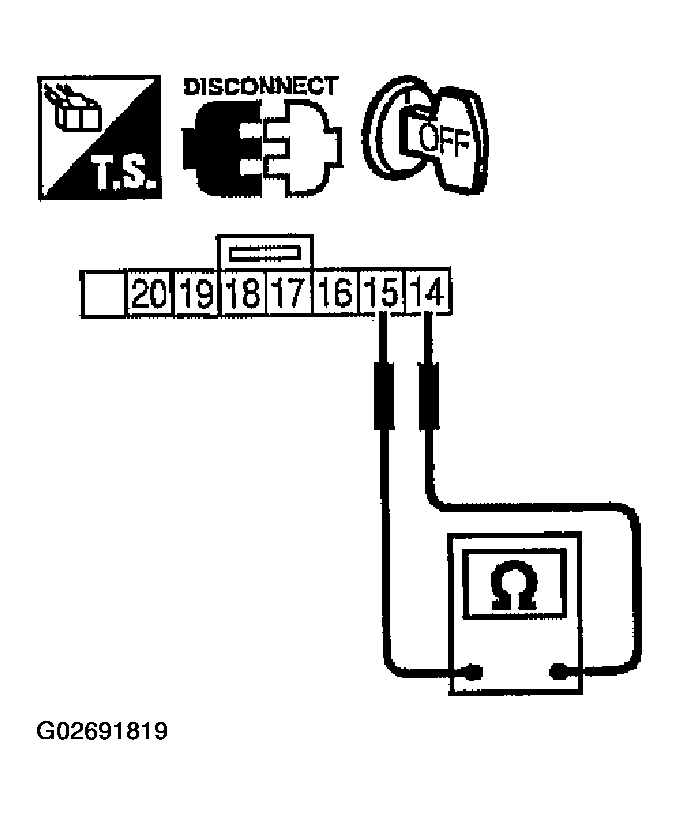

    Fig 1: Checking Continuity Between ASCD Steering Switch Terminals 14 & 15
    G02691819Courtesy of NISSAN MOTOR CO., U.S.A.

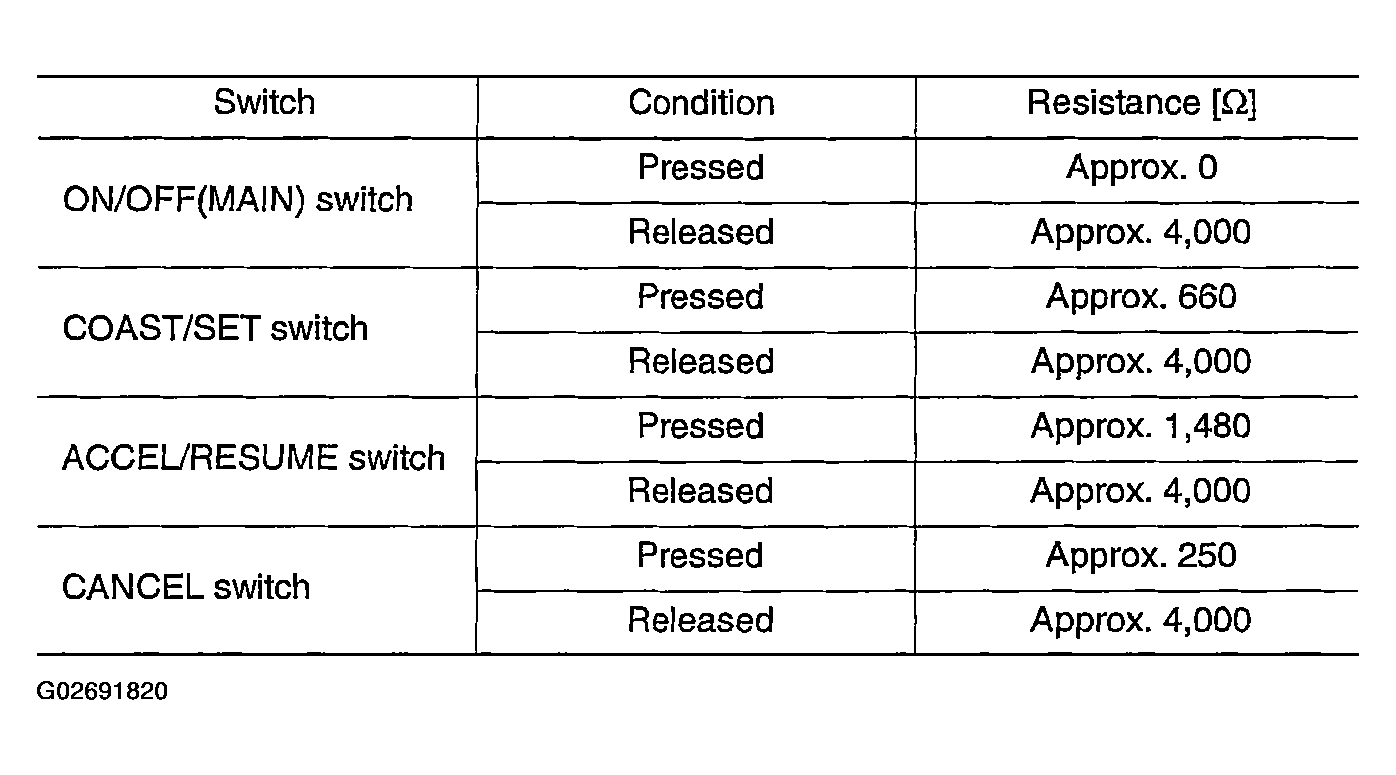

Fig 2: Checking ASCD Steering Switch
G02691820Courtesy of NISSAN MOTOR CO., U.S.A.
