Component Inspection: Condenser

  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals 1 and 2.
CHECKING RESISTANCE

Resistance Above 1 MΩ at 25°C (77°F)

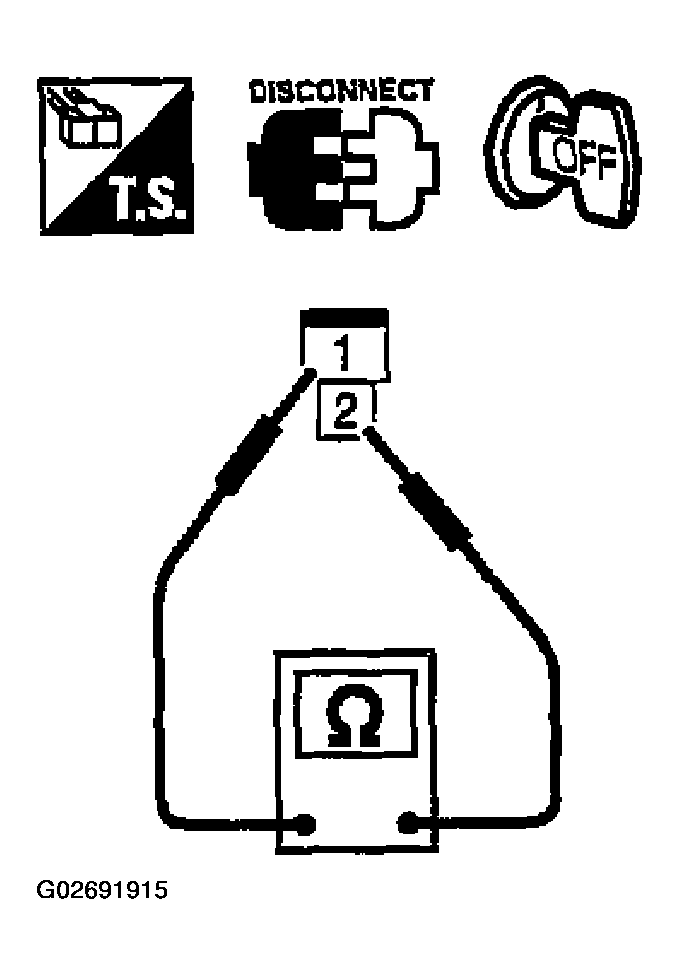

Fig 1: Checking Ignition Signal
G02691915Courtesy of NISSAN MOTOR CO., U.S.A.
