Ignition Coil With Power Transistor

  1. Turn ignition switch OFF.
  2. Disconnect ignition coil harness connector.
  3. Check resistance between ignition coil terminals as follows.

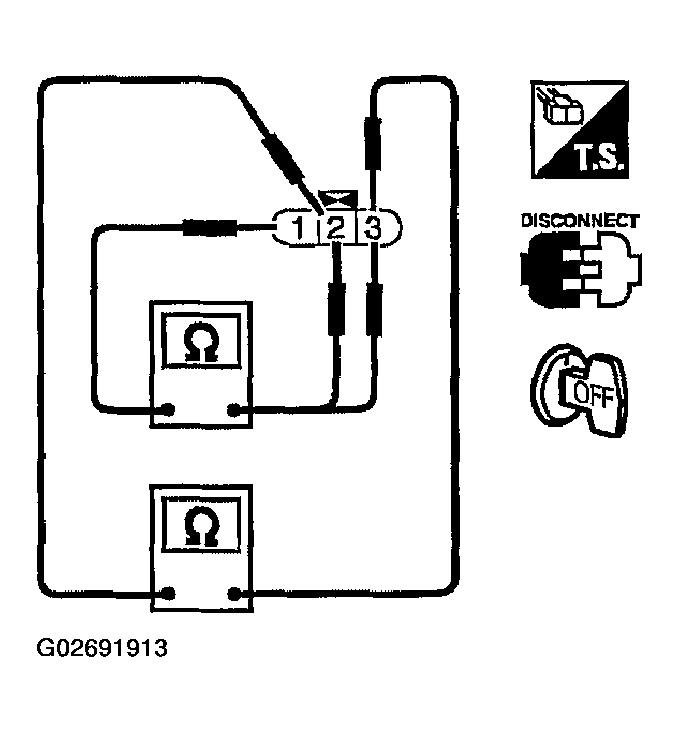

    Fig 1: Checking Ignition Coil With Power Transistor (1 Of 2)
    G02691913Courtesy of NISSAN MOTOR CO., U.S.A.

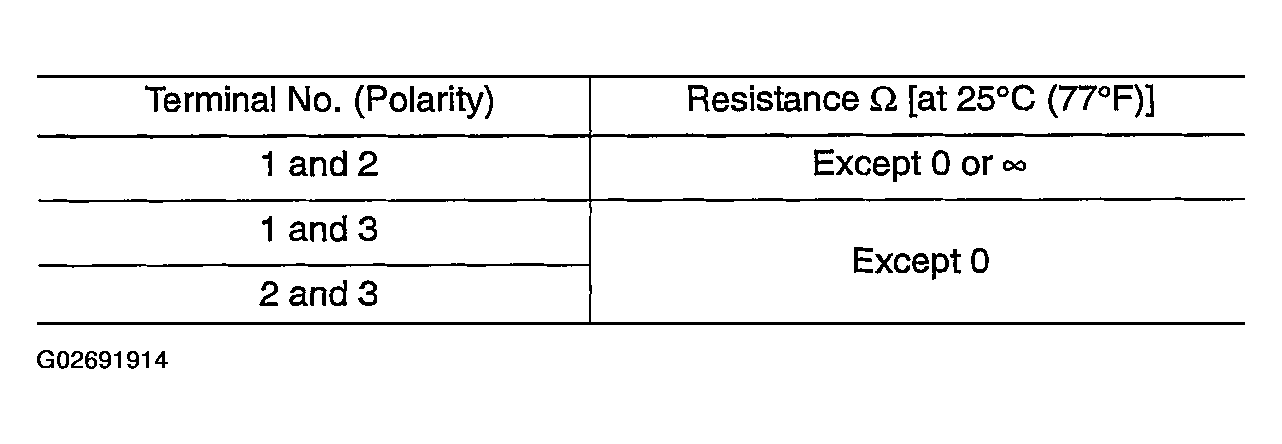

    Fig 2: Checking Ignition Coil With Power Transistor (2 Of 2)
    G02691914Courtesy of NISSAN MOTOR CO., U.S.A.
