Diagnostic Procedure

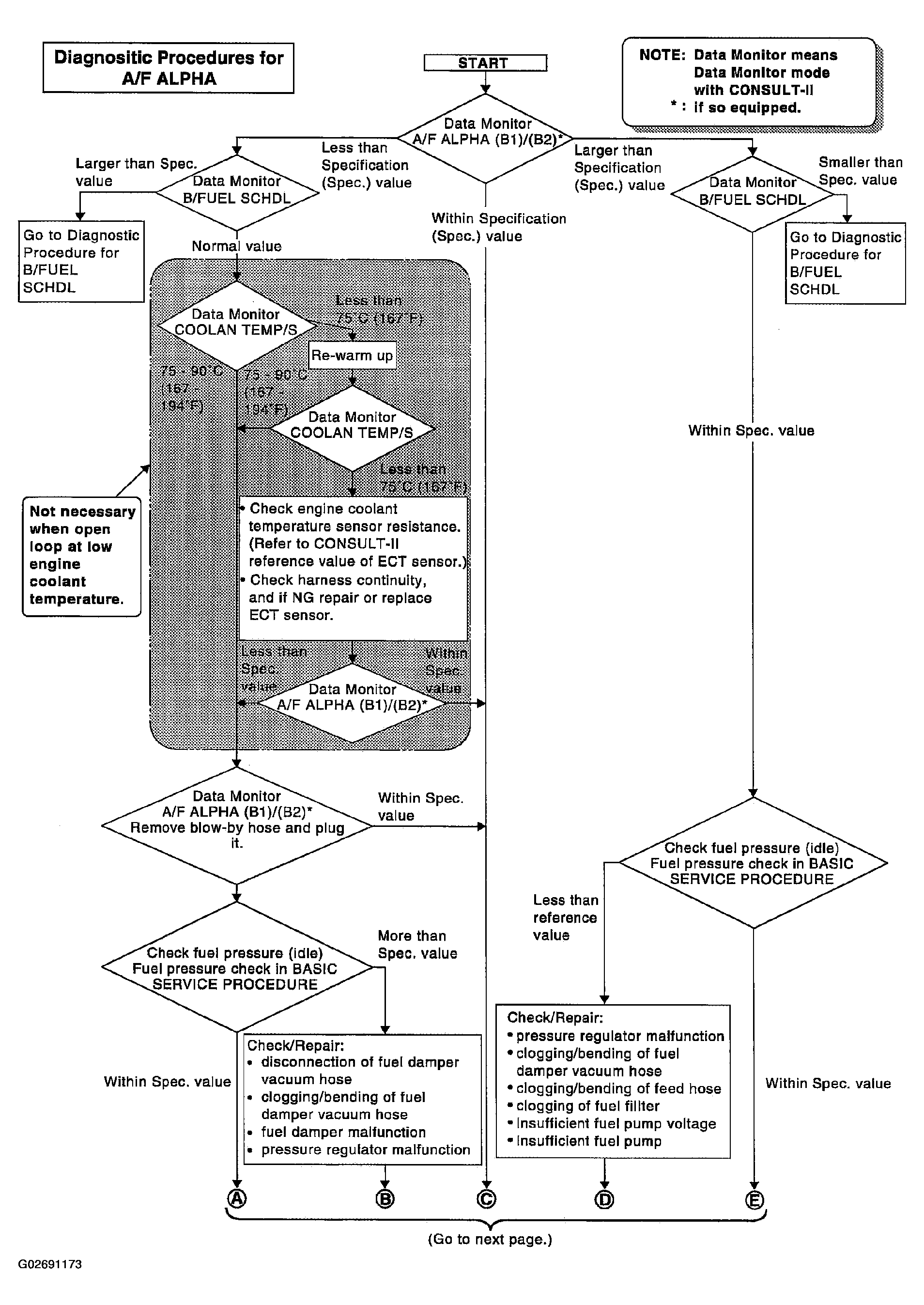

Fig 1: Diagnostic Procedure - A/F ALPHA (1 Of 3)
G02691173Courtesy of NISSAN MOTOR CO., U.S.A.

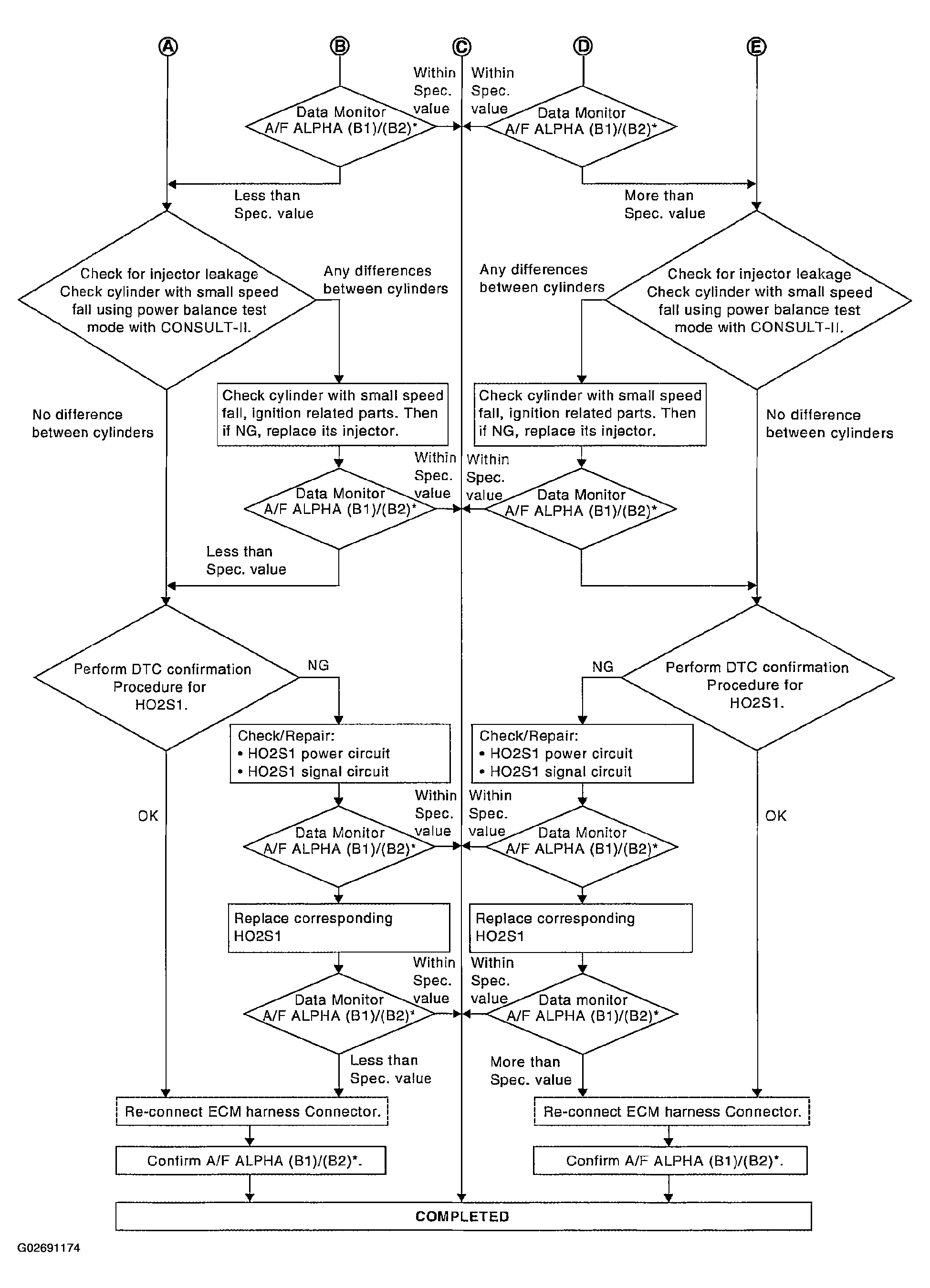

Fig 2: Diagnostic Procedure - A/F ALPHA (2 Of 3)
G02691174Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Diagnostic Procedure - A/F ALPHA (3 Of 3)
G02691175Courtesy of NISSAN MOTOR CO., U.S.A.
