Infiniti
>>
2004
>>
QX56 RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System
>>
Trouble Diagnosis
>>
Circuit Diagram
Circuit Diagram

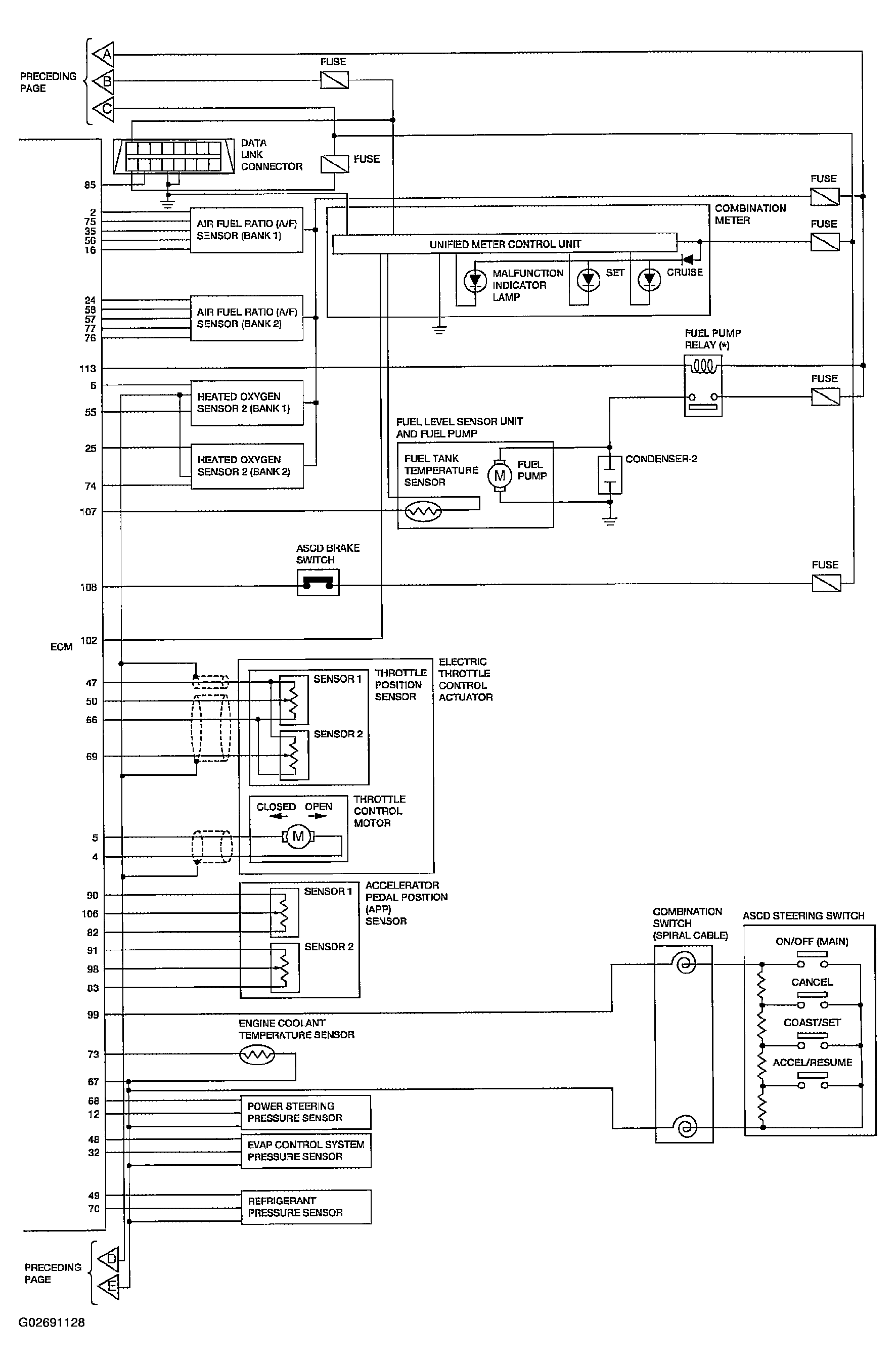

Fig 1: Circuit Diagram - Engine Control (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Circuit Diagram - Engine Control (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
