Work Flow

Flow Chart

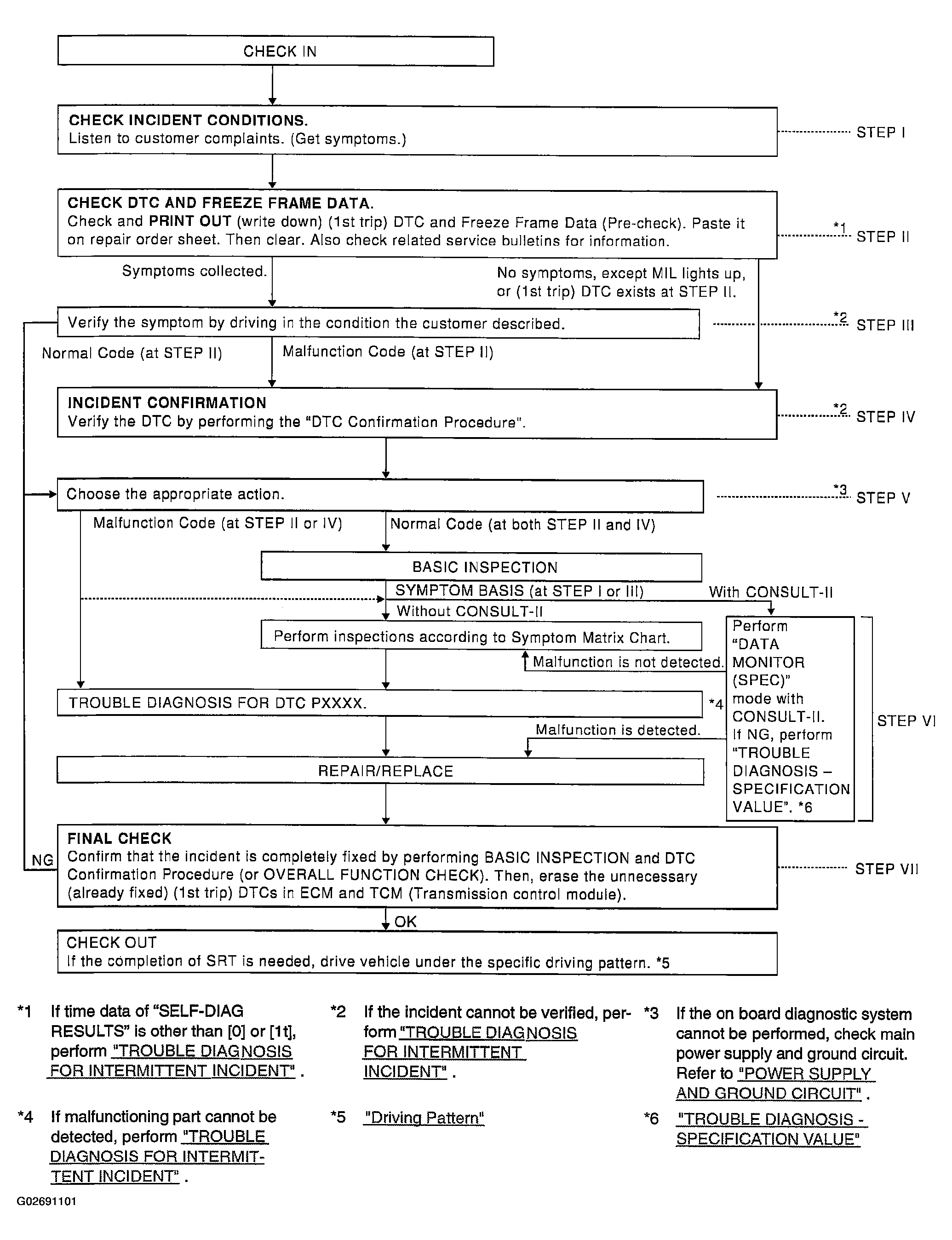

Fig 1: Trouble Diagnosis - Work Flow Chart

G02691101

Courtesy of NISSAN MOTOR CO., U.S.A.

Description for Work Flow

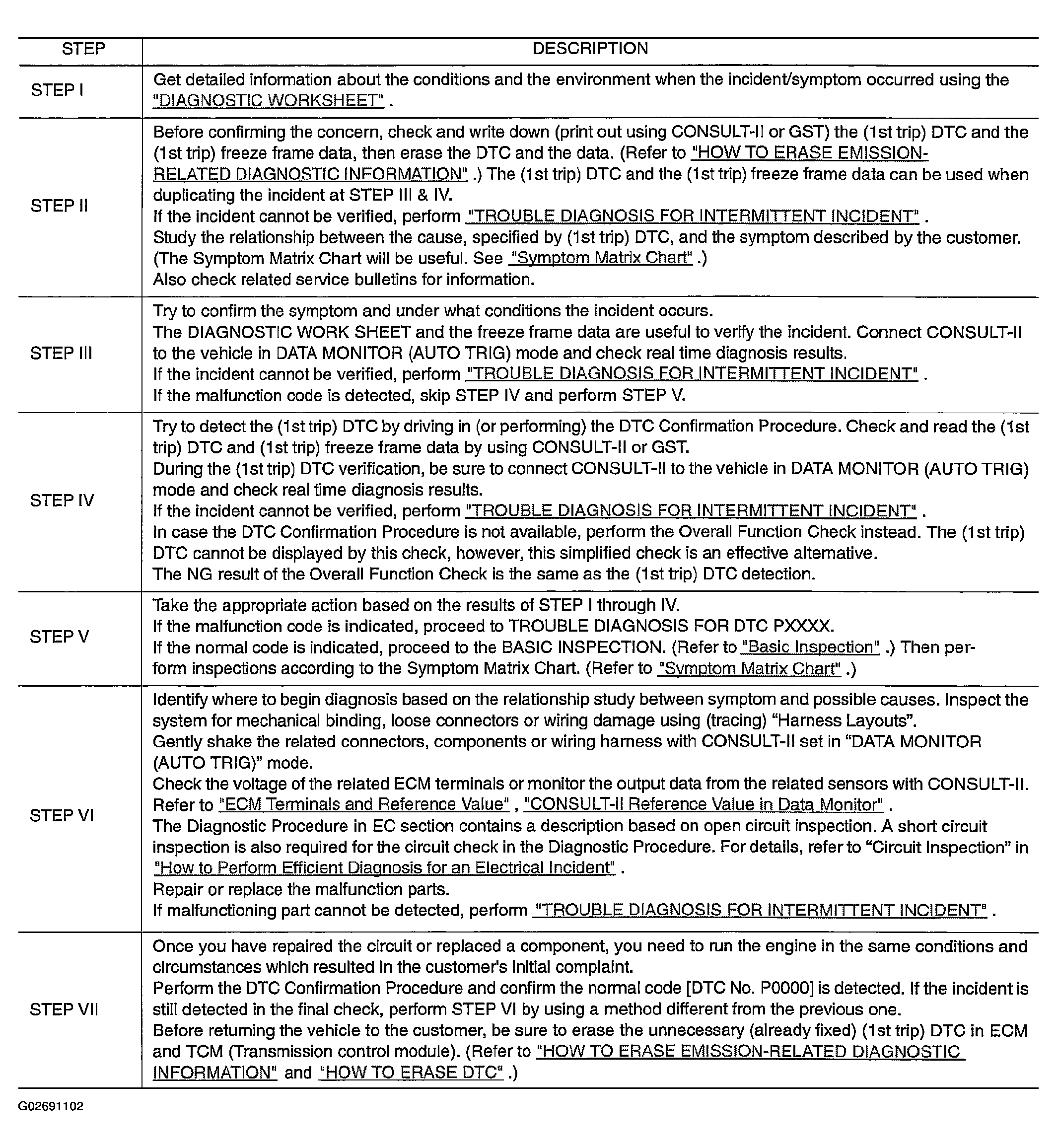

Fig 2: Description For Work Flow

G02691102

Courtesy of NISSAN MOTOR CO., U.S.A.
