Home >> Infiniti >> 2007 >> M45 >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System >> VDC/TCS/Abs >> Wheel Sensor >> Removal and Installation >> Component

Removal and Installation: Component

Refer to COMPONENTS .

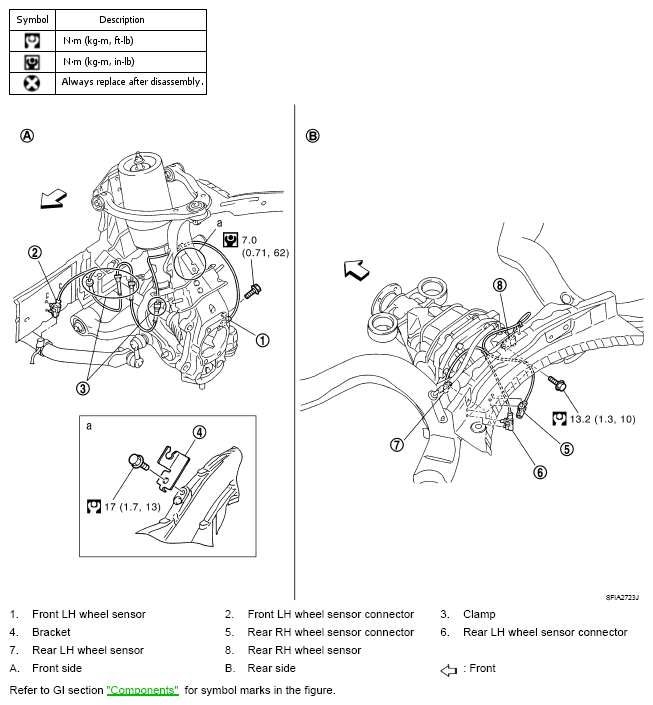

Fig 1: Wheel Sensor Replacement Components With Torque Specifications
G05211865
NOTE: The above figure (front side) shows left side. Right side is the mirror image.
