Circuit Diagram

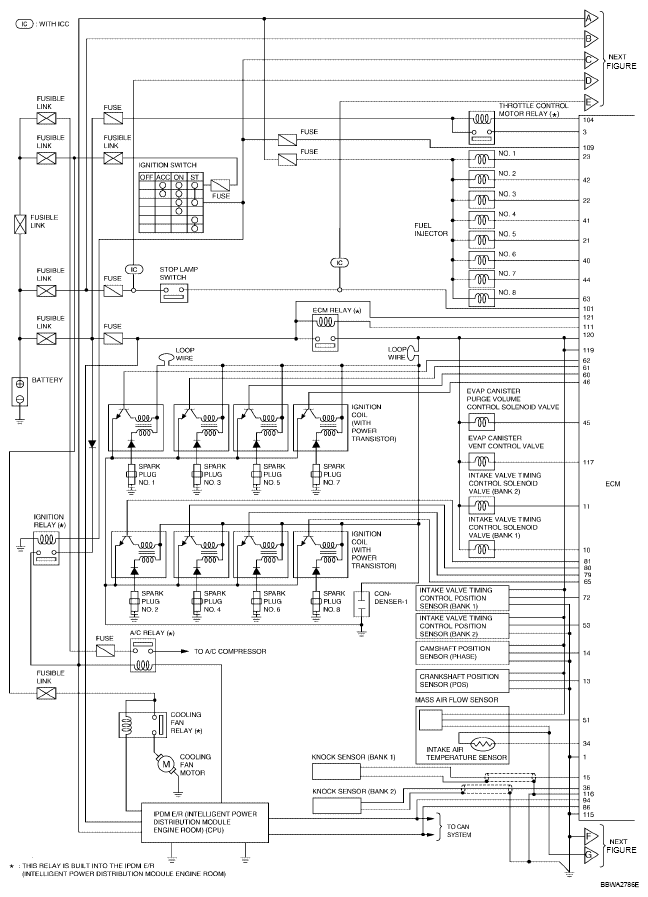

Fig 1: Engine Control System - Circuit Diagram (1 Of 2)
G05228461Courtesy of NISSAN NORTH AMERICA, INC.

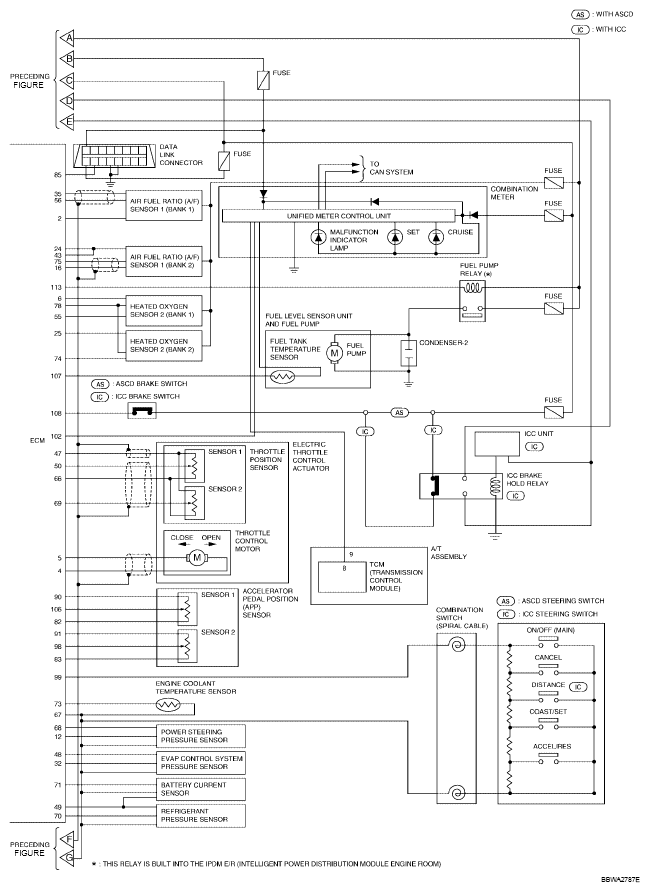

Fig 2: Engine Control System - Circuit Diagram (2 Of 2)
G05228462Courtesy of NISSAN NORTH AMERICA, INC.
