Overall Sequence

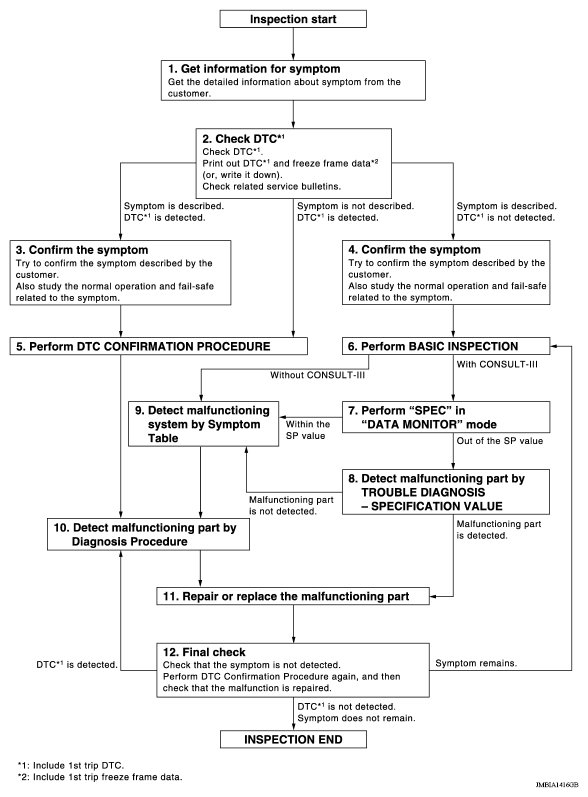

Fig 1: Diagnosis And Repair Work Flow Chart
G05880968Courtesy of NISSAN MOTOR CO., U.S.A.
