Engine Control Component Parts/Control Systems Application

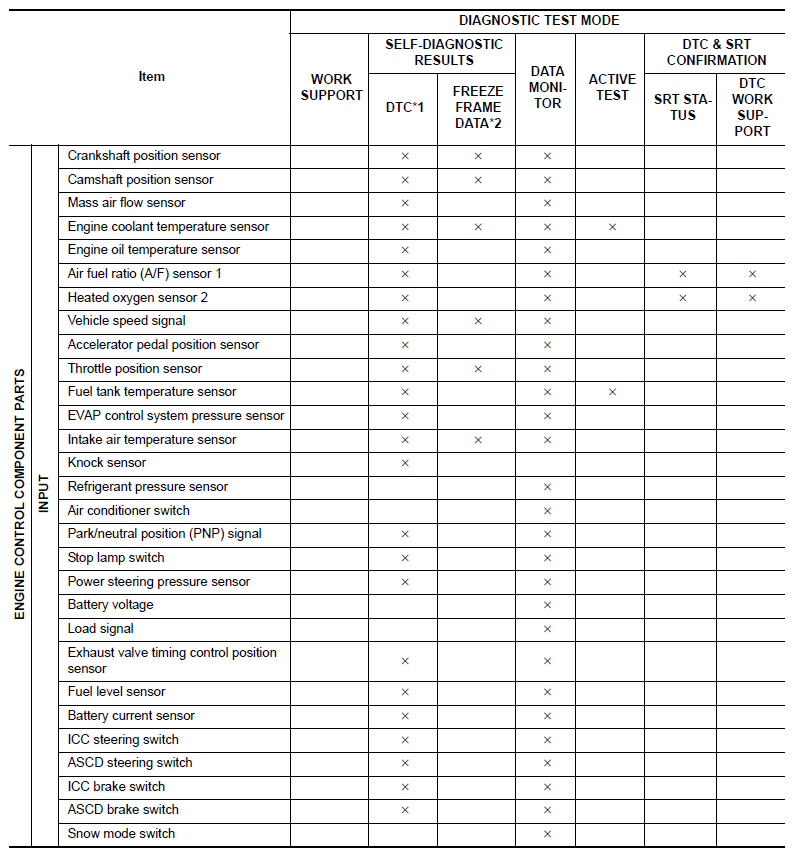

Fig 1: Engine Control Component Parts/Control Systems Application Information (1 Of 2)
G06306434Courtesy of NISSAN MOTOR CO., U.S.A.

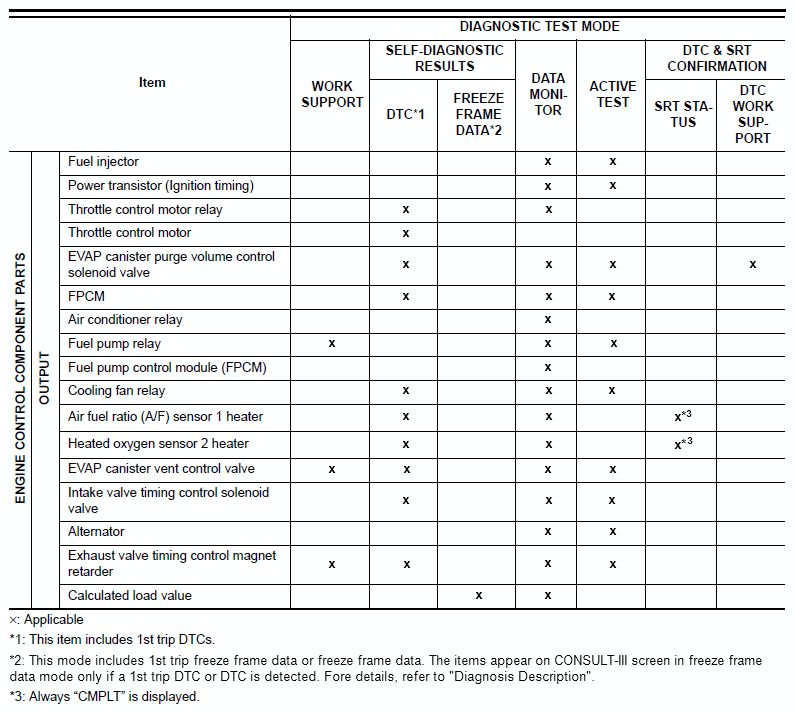

Fig 2: Engine Control Component Parts/Control Systems Application Information (2 Of 2)
G06306435Courtesy of NISSAN MOTOR CO., U.S.A.
