Fuel Injector: Wiring Diagram

NOTE: For PG-Power, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

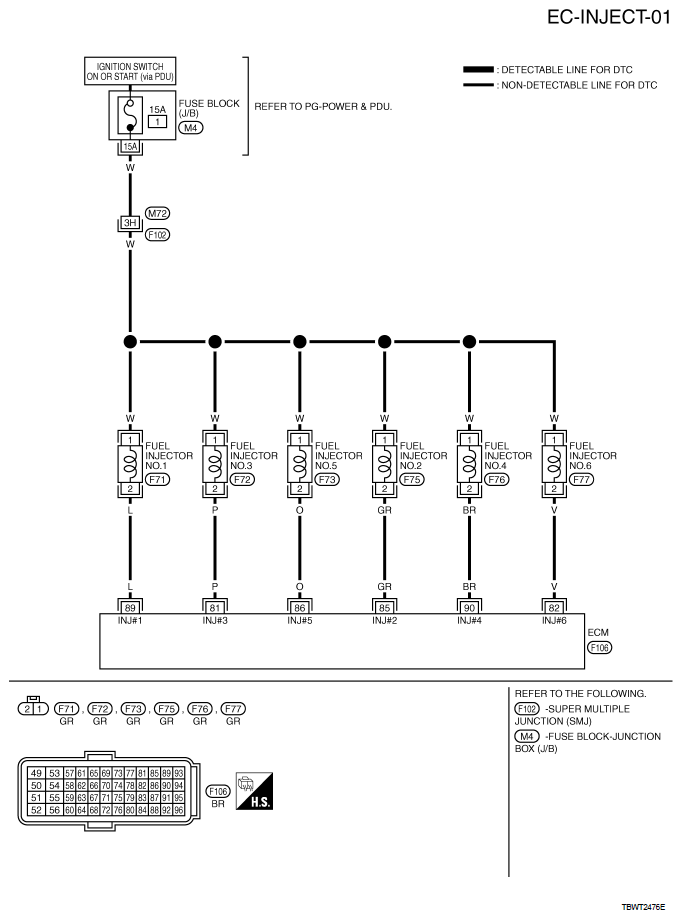

Fig 1: EC-INJECT-01 - Wiring Diagram

G06306799

Courtesy of NISSAN MOTOR CO., U.S.A.
