Engine Control System - System And Component Testing
>>
ICC Brake Switch
>>
Wiring Diagram
ICC Brake Switch: Wiring Diagram
NOTE:
For PG-Power, go to
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
.

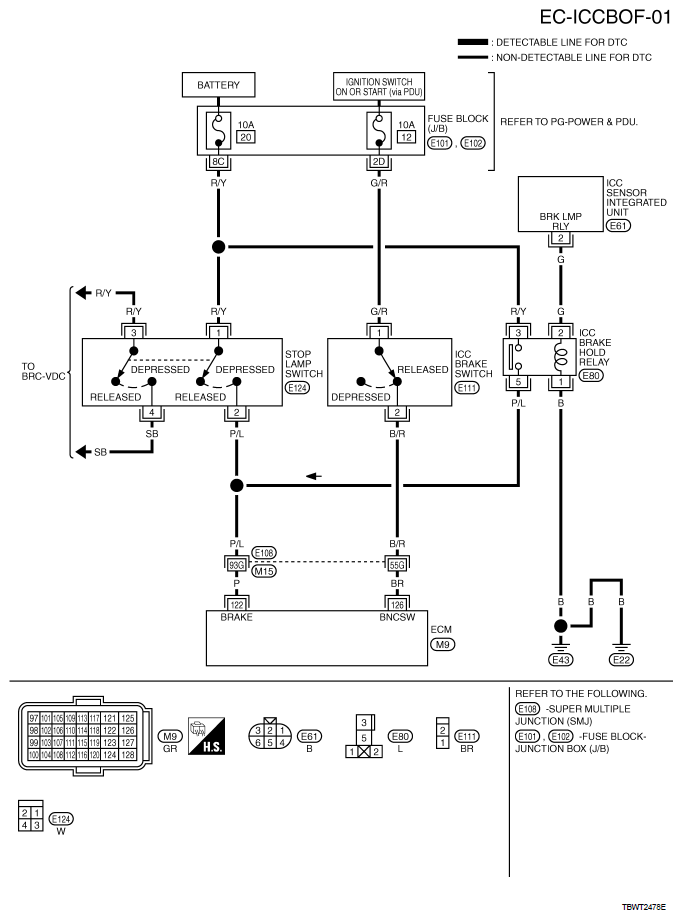

Fig 1: EC-ICCBOF-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
