Home >> Infiniti >> 2010 >> M35 Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - System And Component Testing >> Refrigerant Pressure Sensor >> Wiring Diagram

Refrigerant Pressure Sensor: Wiring Diagram

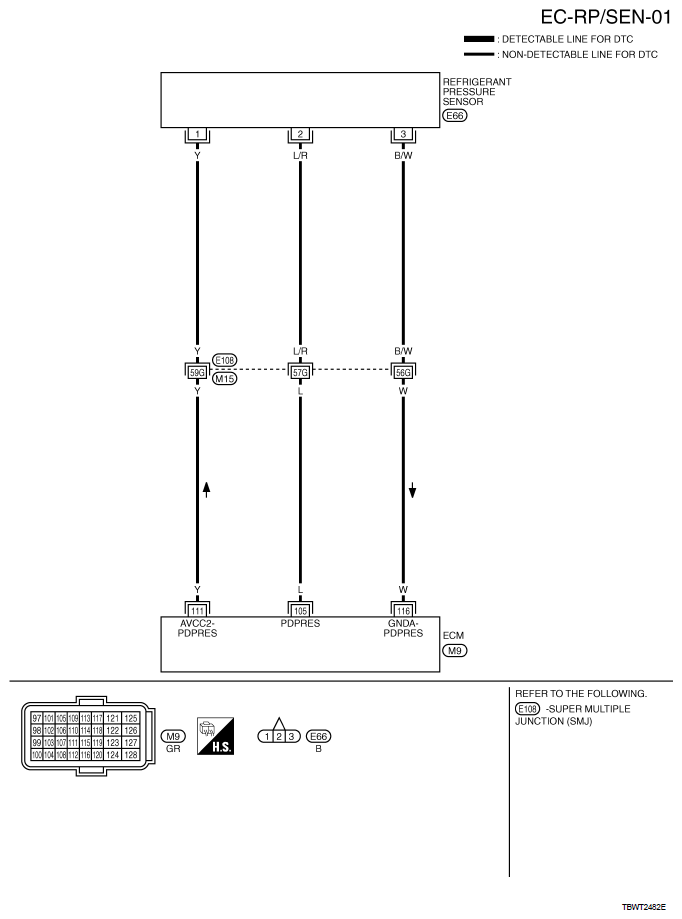

Fig 1: EC-RP/SEN-01 - Wiring Diagram

G06306843

Courtesy of NISSAN MOTOR CO., U.S.A.
