Engine Control System - Introduction
>>
Service Information
>>
Trouble Diagnosis
>>
Circuit Diagram
Circuit Diagram

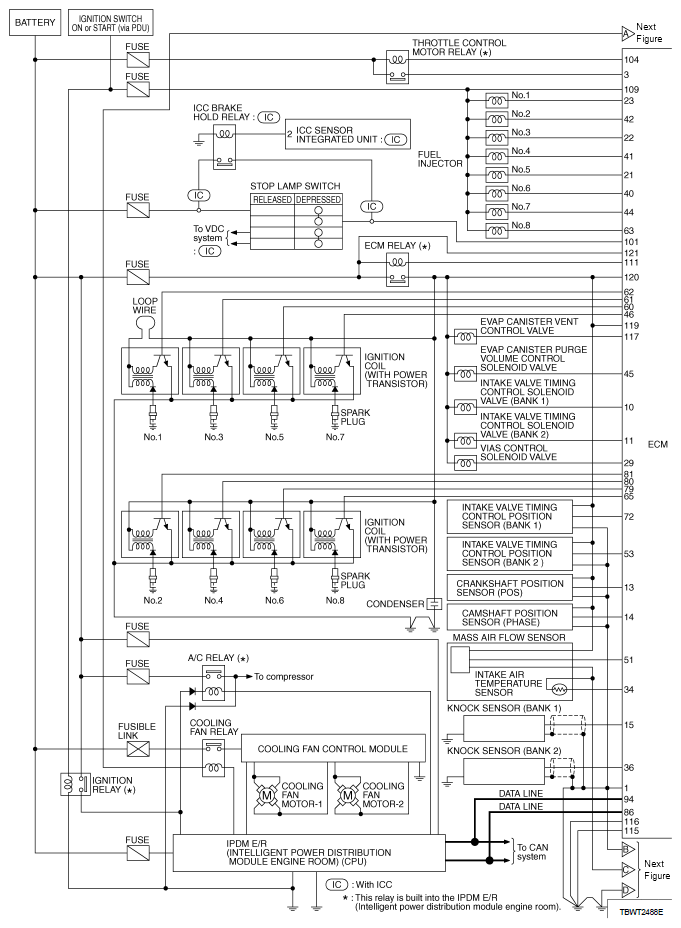

Fig 1: Vacuum Control System - Circuit Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

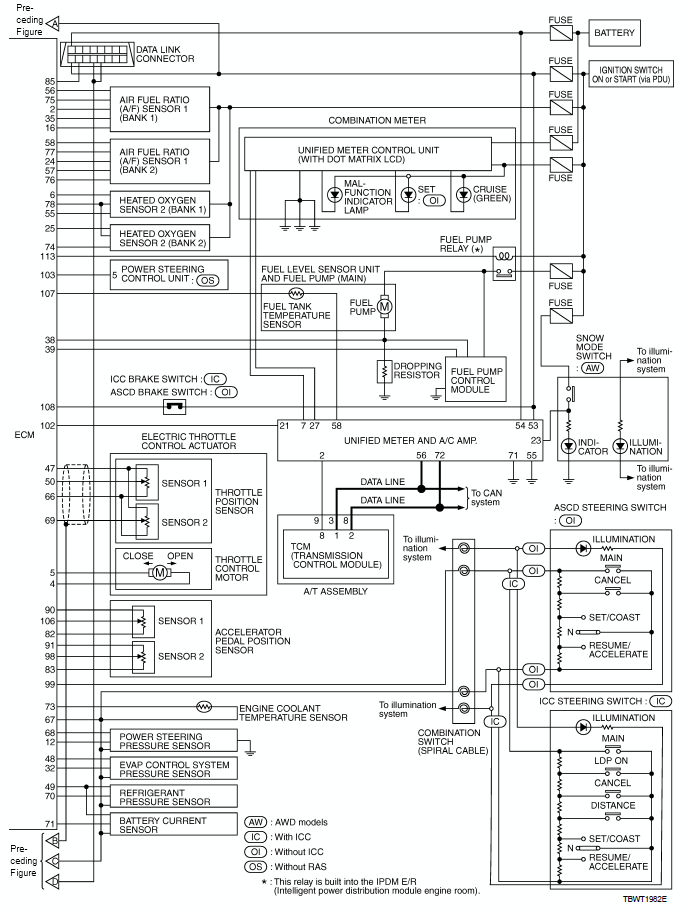

Fig 2: Vacuum Control System - Circuit Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
