Vacuum Hose Drawing

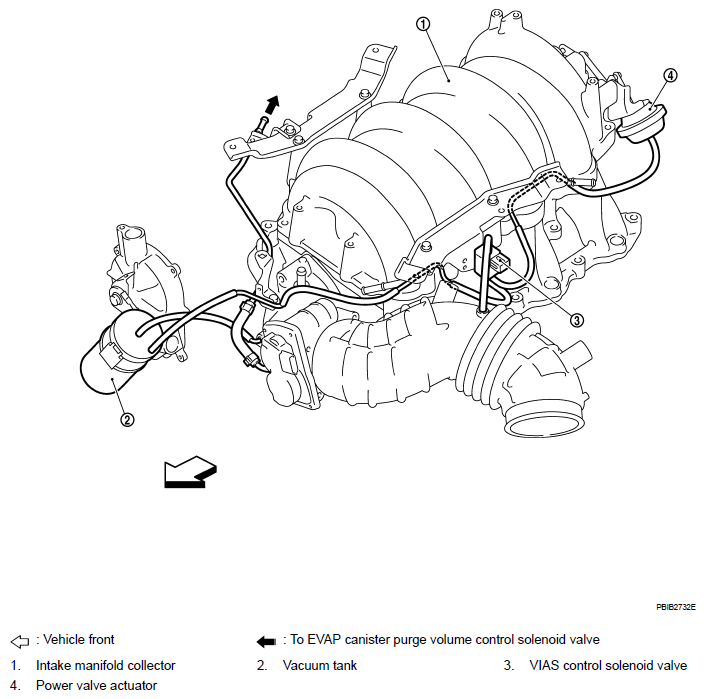

Fig 1: Vacuum Hose Drawing

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Never use soapy water or any type of solvent while installing vacuum hoses or purge hoses.
Refer to "SCHEMATIC " for Vacuum Control System.
