ASCD Indicator: Wiring Diagram

NOTE: For PG-Power, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

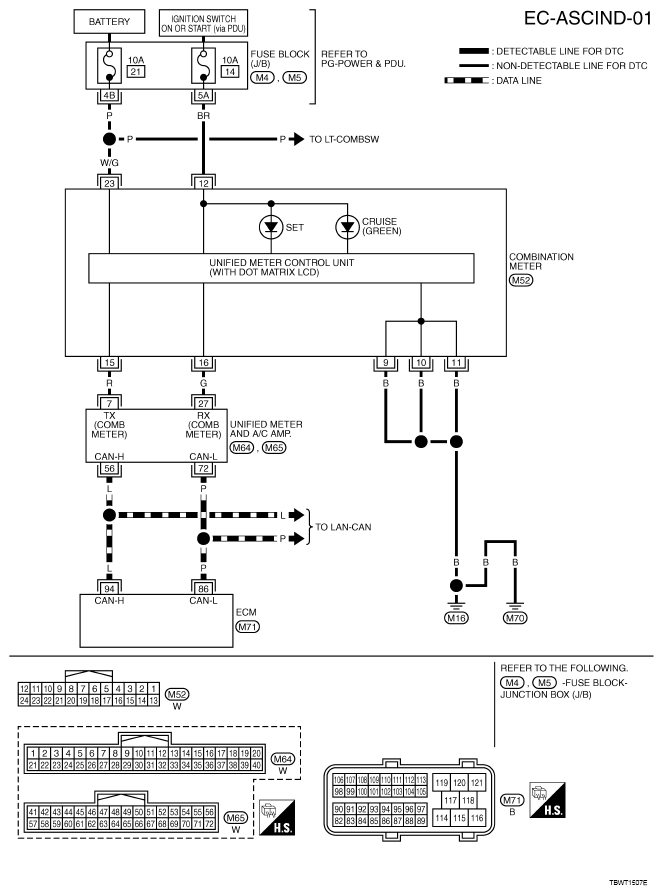

Fig 1: Wiring Diagram - EC-ASCIND-01

G05211112

Courtesy of NISSAN MOTOR CO., U.S.A.
