Snow Mode Switch: Wiring Diagram

NOTE: For PG-Power, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

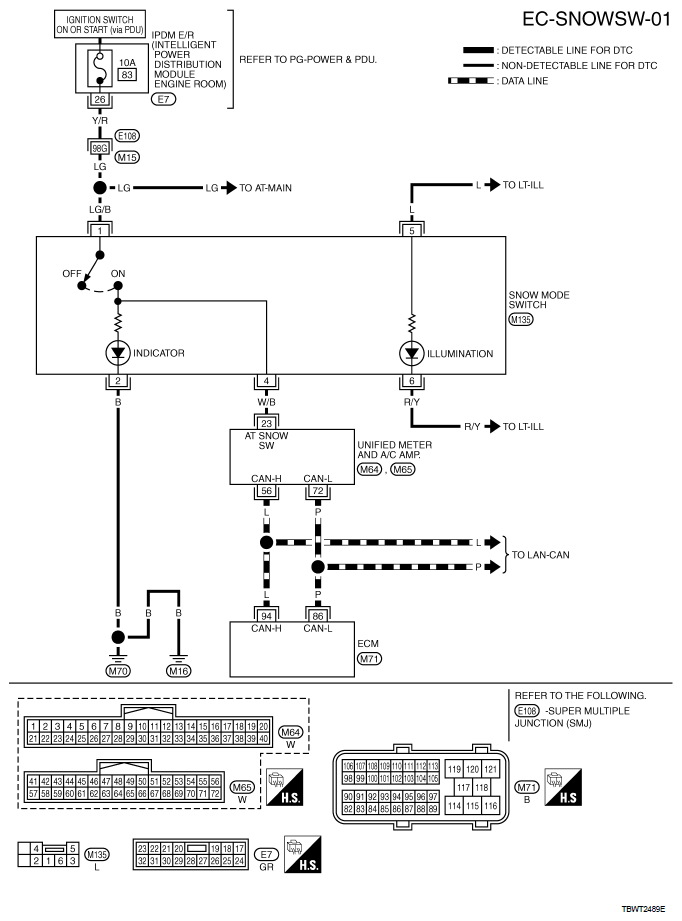

Fig 1: Wiring Diagram - EC-SNOWSW-01

G06303531

Courtesy of NISSAN MOTOR CO., U.S.A.
