Exploded View

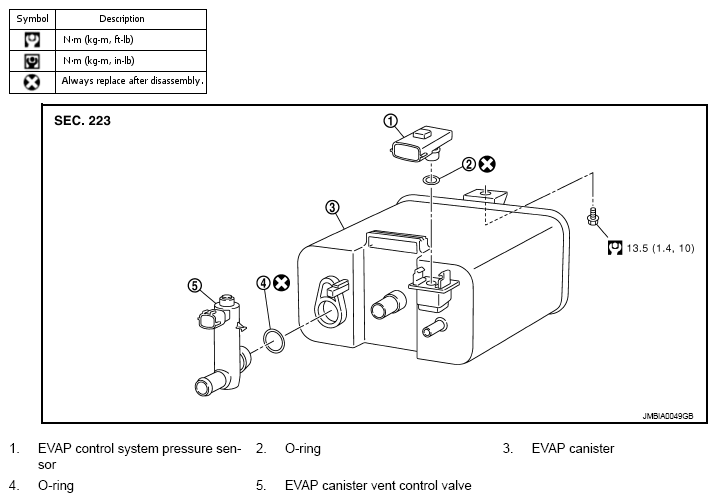

Fig 1: Exploded View Of EVAP Canister With Torque Specifications (1 Of 2)
G07020205Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "CONTENTS " for symbols not described on the above.
